Products specifications Report Issue?

Win Source Part Number Cross

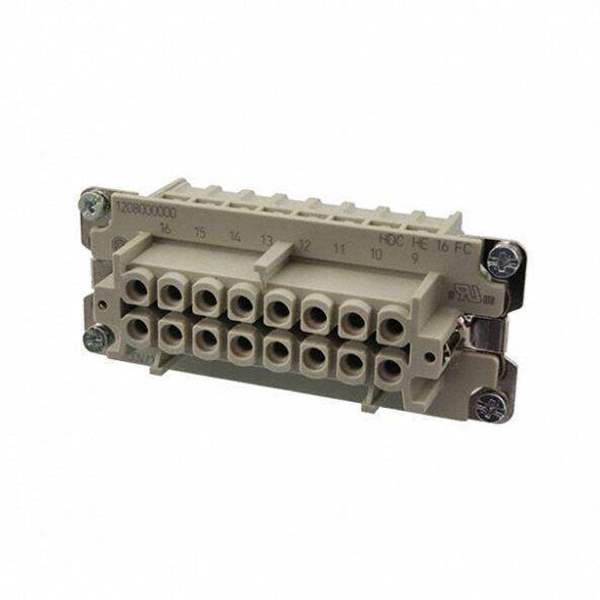

Manufacturer Weidmüller
Series Rockstar® HE
Package Bulk
Category Connectors, Interconnects Heavy Duty Connectors Heavy Duty Connector Inserts, Modules
Product Status Active
Connector Type Insert without Contacts
Gender Female
Number of Positions 16+Ground
Size 6
Termination Style Crimp
Voltage Rating 500V
Win Source Part Number WS1205816-1208000000
Ultra Librarian 3D Model Ultra Librarian 1208000000 CAD Model

Description

The rectangular panel cutout frames fit exactly into the standard cutout for heavy-duty connectors. This makes it possible to accommodate up to 40 connectors in a very confined space. • Feeds through prefabricated wiring in confined spaces. • Two-piece, two-tier system • Fast and easy mounting • Standard panel cutout frames for 16- and 24-pole industrial plug-in connectors<br /> • The predefined gap achieves a minimum class of protection of IP54 • Large numbers of cables in very confined spaces<br /> • Retrofitting of prefabricated wiring also possible<br /> • The manufacturer’s guarantee covering the prefabricated cables remains valid • Integral strain relief to VDE 0619 • Locknuts ensure that working “overhead” is safe and simple<br />
