Same model may have multiple batches, images only for reference.

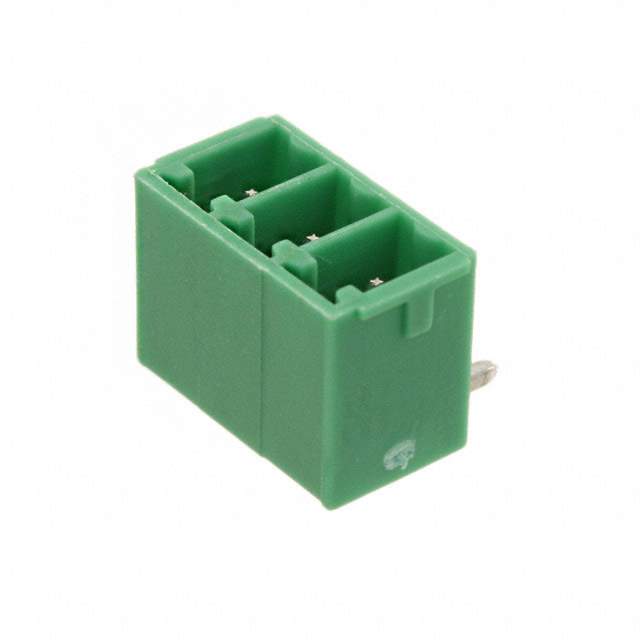

1793250000 Real Image
Same model may have multiple batches, images only for reference.

1793250000

Part No 1793250000
Manufacturer Weidmuller
Catalog Unclassified
Description TERM BLOCK HDR 3POS 90DEG 3.81MM
Datasheet
1793250000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle - Through Hole
Manufacturer Weidmuller
Series Omnimate SC
Package Bulk
Operating Temperature Range -50°C ~ 120°C
Mounting Through Hole
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SC 3.81/03/90G 3.2SN GN BX, SL3.81/3/90G, 281-1931-NDR, 281-1931
Quantity per package 138
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905567-1793250000
Ultra Librarian 3D Model Ultra Librarian 1793250000 CAD Model

Description

The Weidmuller Omnimate SC series 3 position terminal block header is an ideal solution for connecting wires in electronic circuits.

  • Manufacturer: Weidmuller
  • Series: Omnimate SC
  • Positions: 3
  • Pins: Male
  • Sides: Shrouded (All Four Sides)
  • Angle: 90-degree
  • Mounting: Through Hole
  • Packaging: Bulk
  • Operating Temperature: -50°C to 120°C
