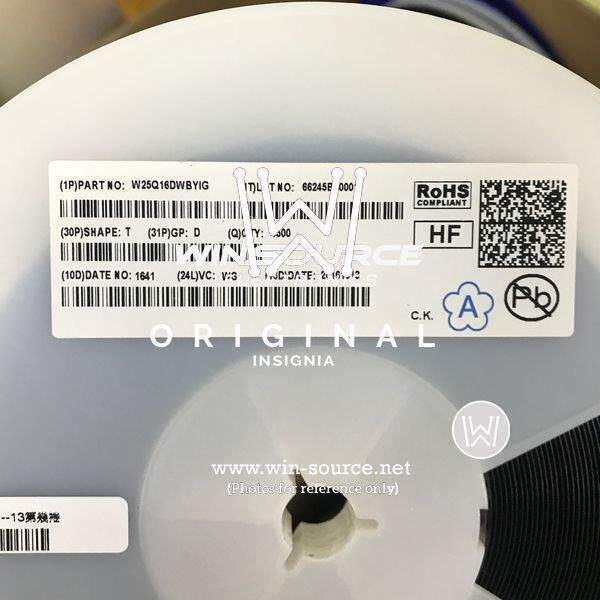

W25Q16DWBYIG TR label picture W25Q16DWBYIG TR real image
Same model may have multiple batches, images only for reference.
W25Q16DWBYIG TR label picture W25Q16DWBYIG TR real image
W25Q16DWBYIG TR label picture W25Q16DWBYIG TR real image
Same model may have multiple batches, images only for reference.

W25Q16DWBYIG TR

Part No W25Q16DWBYIG TR
Manufacturer Winbond Electronics
Catalog Flash
Description IC FLASH 16MBIT 104MHZ 8WLCSP
Datasheet
W25Q16DWBYIG TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Winbond Electronics
Packaging Reel - TR
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Max Frequency 104MHz
Supply Voltage - Operating 1.65 V to 1.95 V
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-WLCSP (1.8x2.7)
Win Source Part Number 1117801-W25Q16DWBYIG TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian W25Q16DWBYIG TR CAD Model

Description

The Winbond W25Q16DWBYIG TR flash memory is a high-performance memory used in various electronic devices. It has a memory size of 16Mb (2M x 8) and a maximum frequency of 104MHz. The memory is packaged in an 8-WLCSP (1.8x2.7) case and is mounted through hole. It has a supply voltage of 1.65V to 1.95V and is suitable for use in various electronic devices. The Winbond W25Q16DWBYIG TR flash memory is known for its reliability and durability, making it an ideal choice for many applications.
