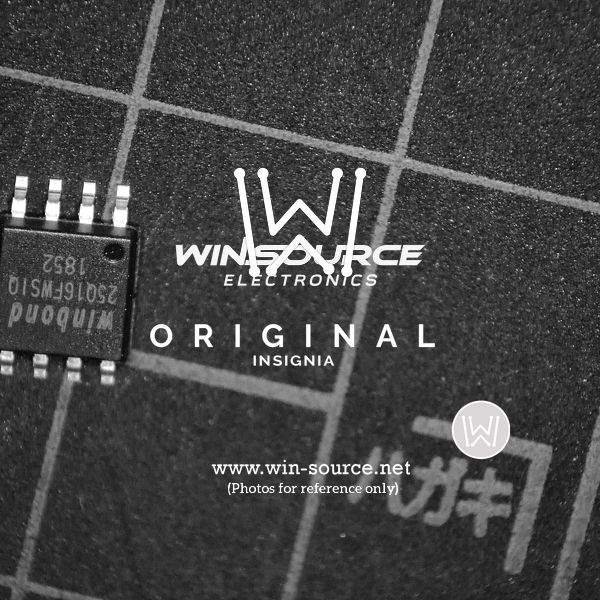

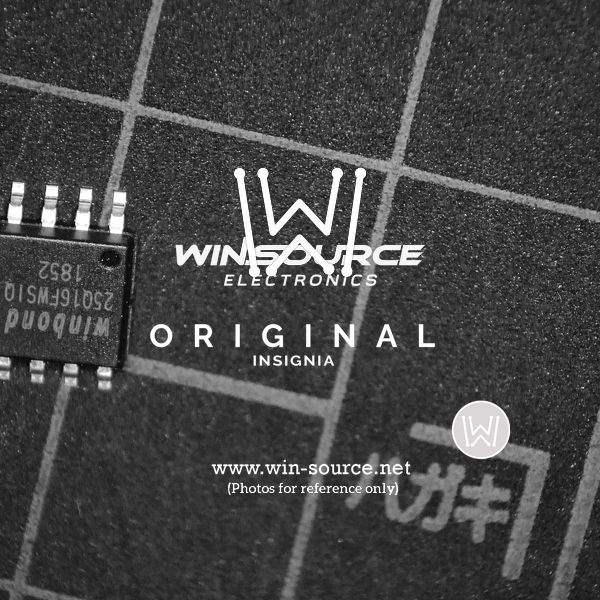

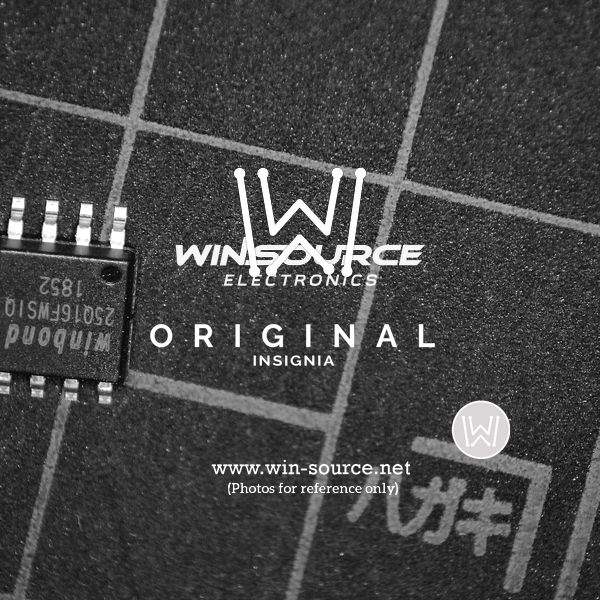

W25Q16FWSSIQ Real Image W25Q16FWSSIQ Real Image1 W25Q16FWSSIQ Real Image2 W25Q16FWSSIQ Real Image3
Same model may have multiple batches, images only for reference.
W25Q16FWSSIQ Real Image W25Q16FWSSIQ Real Image1 W25Q16FWSSIQ Real Image2 W25Q16FWSSIQ Real Image3
W25Q16FWSSIQ Real Image W25Q16FWSSIQ Real Image1 W25Q16FWSSIQ Real Image2 W25Q16FWSSIQ Real Image3
Same model may have multiple batches, images only for reference.

W25Q16FWSSIQ

Part No W25Q16FWSSIQ
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 16MBIT SPI/QUAD 8SOIC
Datasheet
W25Q16FWSSIQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tube
Product Status Obsolete
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mbit
Memory Organization 2M x 8
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 60µs, 3ms
Voltage - Supply 1.65V ~ 1.95V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOIC
Base Product Number W25Q16
Standard Package 90 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 843825-W25Q16FWSSIQ
Ultra Librarian 3D Model Ultra Librarian W25Q16FWSSIQ CAD Model

Description

The 843825-W25Q16FWSSIQ is a non-volatile 16Mbit FLASH memory module designed for use in integrated circuits.

  • Voltage Supply Range: 1.65V to 1.95V
  • Clock Frequency: 104 MHz
  • Memory Size: 16Mbit
  • Organization: 2M x 8
  • Memory Interface: SPI - Quad I/O and QPI
  • Write Cycle Time (Word): 60µs
  • Write Cycle Time (Page): 3ms
  • Mounting Type: Surface Mount Technology
  • Package: 8-SOIC
