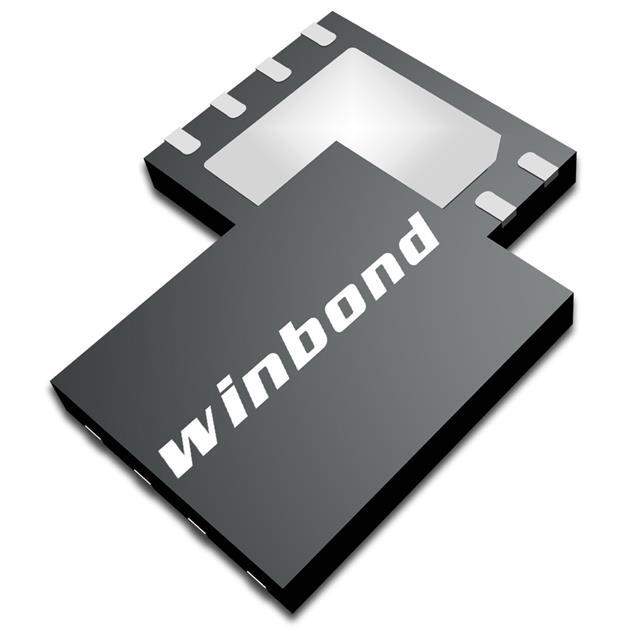

The W25Q40EWBYIG is a 4M-bit Serial Flash memory device manufactured by Winbond Electronics. It features a standard Serial Peripheral Interface (SPI) and supports Dual/Quad SPI operation for high performance. It is designed for a wide range of embedded applications.

Applications:

• Embedded Systems
• Consumer Electronics
• IoT Devices
• Wearable Devices
• Gaming Consoles

Features:

• 4M-bit (512K-byte) Serial Flash memory
• Standard SPI, Dual SPI, Quad SPI
• Clock Frequency: Up to 104 MHz
• Continuous Read with 8/16/32-Byte Wrap
• Low Power Consumption
• Flexible Erase Capability
• Software and Hardware Write Protection

Benefits:

• Space-saving with small package options
• Fast data transfer rates with Dual/Quad SPI
• Low power consumption for battery-powered applications
• Secure data storage with write protection features
• Long-term reliability with high endurance

Additional Details:

The W25Q40EWBYIG operates with a single power supply ranging from 2.7V to 3.6V. It features individual sector write protection, offering flexibility for secure data storage. The device also supports a variety of commands for reading, programming, and erasing data. It is compliant with JEDEC standards and is available in various packaging options. This device provides a cost-effective solution for non-volatile storage in embedded applications.

The W25Q40EWBYIG is designed for high-performance, low-power applications and is suitable for storing firmware, configuration data, and other important information. It offers reliable data storage with long data retention and high endurance, making it ideal for demanding applications. The device's compact size and low power consumption make it well-suited for use in portable and wearable devices.
