Same model may have multiple batches, images only for reference.

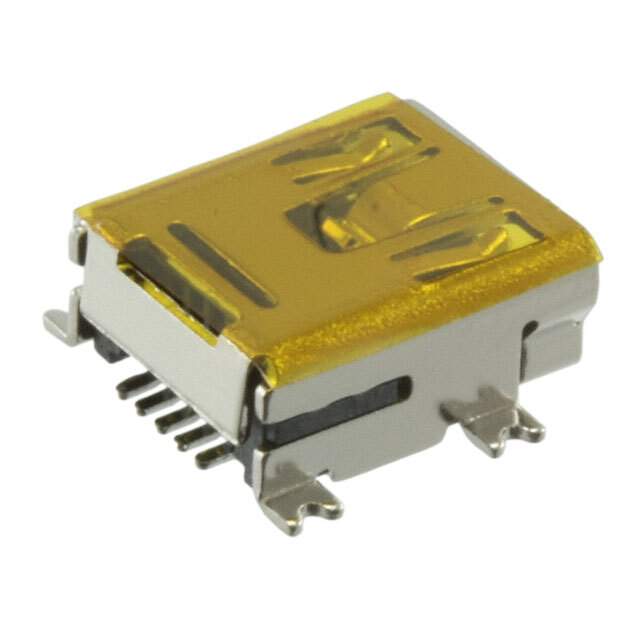

65100516121 Real Image
Same model may have multiple batches, images only for reference.

65100516121

Part No 65100516121
Manufacturer Wurth Electronics Inc
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MINI B SMD R/A / USB - mini B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Datasheet
65100516121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Wurth Electronics Inc
Series WR-COM
Package Tape & Reel
Product Status Active
Connector Type USB - mini B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30V
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color Black
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849216-65100516121
Ultra Librarian 3D Model Ultra Librarian 65100516121 CAD Model

Description

The WR-COM series from Wurth Electronics Inc is a USB mini B connector assembly. Wurth Electronics Inc manufactures the WR-COM series.

  • Contacts: 5
  • USB Specification: USB 2.0
  • Voltage Rating: 30V
  • Current Rating: 1A
  • Shielding: Shielded
  • Flammability Rating: UL94 V-0
  • Mounting Type: Surface Mount
  • Mounting Feature: Horizontal
  • Mating Cycle: 1500
  • Temperature Range: -40°C to 105°C
