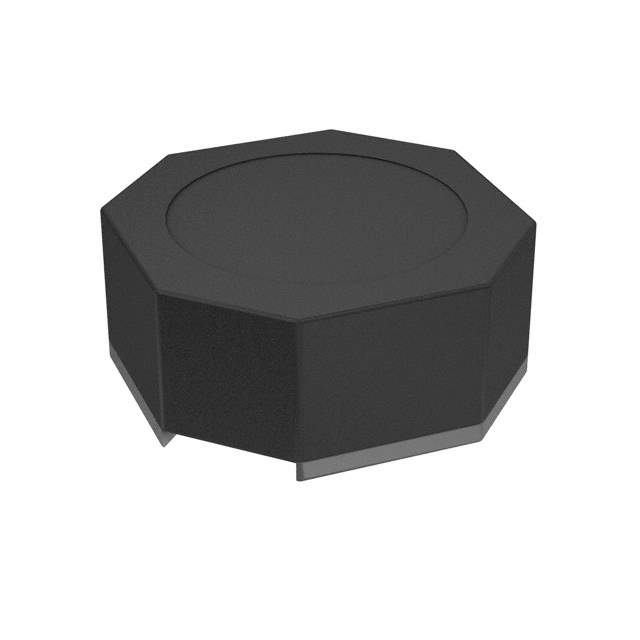

Same model may have multiple batches, images only for reference.

744028001

Name: 744028001
Brand: Wurth Electronics Inc
SKU: 743947
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744028001
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1UH 1.75A 85 MOHM SMD
Datasheet	744028001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±30%
Current Rating (Amps)	1.75 A
Current - Saturation (Isat)	1.5A
Shielding	Shielded
DC Resistance (DCR)	85mOhm Max
Frequency - Self Resonant	150MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2828
Size / Dimension	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max)	0.047" (1.20mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	743947-744028001
Ultra Librarian 3D Model	Ultra Librarian 744028001 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc. offers high-quality fixed inductors suitable for various electronic applications.

Series: WE-TPC
Type: Drum core, wirewound
Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
Inductance: 1 µH
Tolerance: ±30%
Shielding: Shielded
Package: Tape & reel
Height: 0.047" (1.20mm)
DC Resistance (DCR): 85mOhm Max
Current Rating: 1.75 A
Mounting: Surface mount
Temperature Range: -40°C to 125°C
