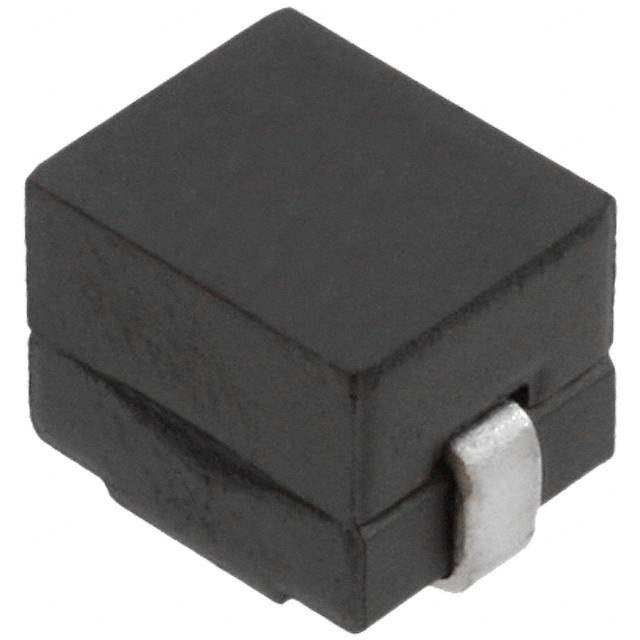

Same model may have multiple batches, images only for reference.

PA2607.301NLT

Name: PA2607.301NLT
Brand: Pulse
SKU: 1383124
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA2607.301NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 300NH 27A 0.29MOHM SMD / 300 nH Shielded Inductor 27 A 0.29mOhm Nonstandard
Datasheet	PA2607.301NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse
Series	PA2607NL
Package	Tape & Reel
Type	-
Material - Core	-
Inductance	300 nH
Tolerance	±15%
Current Rating (Amps)	27 A
Current - Saturation (Isat)	32A
Shielding	Shielded
DC Resistance (DCR)	0.29mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.406" L x 0.301" W (10.31mm x 7.65mm)
Height - Seated (Max)	0.287" (7.30mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	400 pcs
Win Source Part Number	1383124-PA2607.301NLT
Ultra Librarian 3D Model	Ultra Librarian PA2607.301NLT CAD Model

Alternative Products

Description

The PA2607NL is a shielded fixed inductor designed for use in various electronic applications.

Size: 0.406" L x 0.301" W (10.31mm x 7.65mm)
Height: 0.287" (7.30mm)
Inductance: 300 nH
Tolerance: ±15%
DC Resistance (DCR): 0.29mOhm
Current Rating: 27 A
Saturation Current: 32A
Operating Temperature: -40°C to 130°C
Mounting Type: Surface Mount
Package: Tape and Reel
