Same model may have multiple batches, images only for reference.

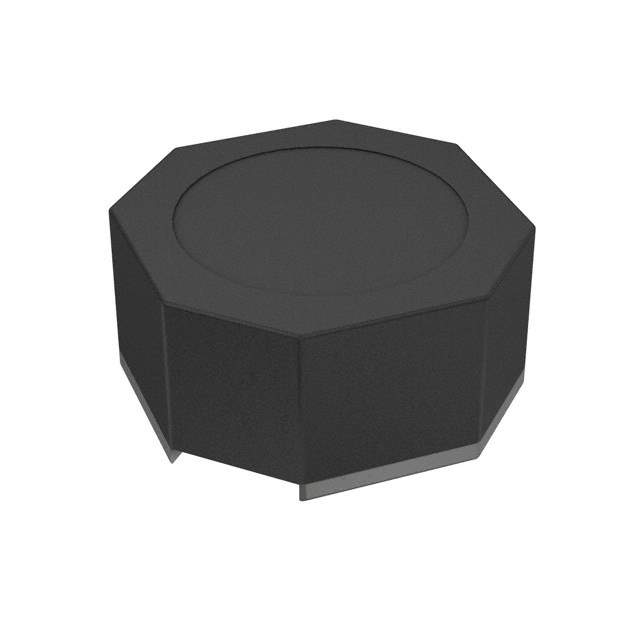

74402900011 Real Image
Same model may have multiple batches, images only for reference.

74402900011

Part No 74402900011
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 110NH 4.5A 15 MOHM SMD
Datasheet
74402900011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 110 nH
Tolerance ±35%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 5.5A
Shielding Shielded
DC Resistance (DCR) 15mOhm Max
Frequency - Self Resonant 1GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.059" (1.50mm)
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857205-74402900011
Ultra Librarian 3D Model Ultra Librarian 74402900011 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielded package.

  • Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
  • Inductance: 110nH
  • Mounting: Surface Mount
  • Maximum Seated Height: 0.059" (1.50mm)
  • Tolerance: ±35%
  • DC Resistance (DCR): 15mOhm max
  • Core Material: Ferrite
  • Self-Resonant Frequency: 1GHz
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 4.5A
