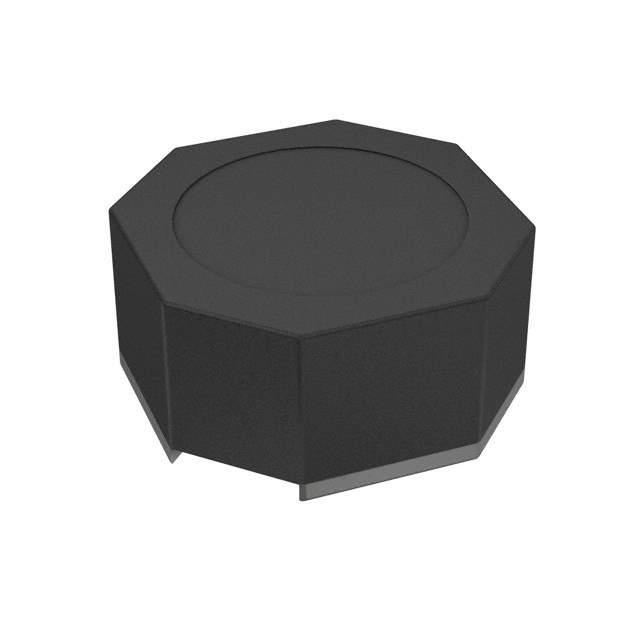

Same model may have multiple batches, images only for reference.

744029100

Name: 744029100
Brand: Wurth Electronics Inc
SKU: 857208
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744029100
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 650MA 470MOHM SMD
Datasheet	744029100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±30%
Current Rating (Amps)	650 mA
Current - Saturation (Isat)	500mA
Shielding	Shielded
DC Resistance (DCR)	470mOhm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2828
Size / Dimension	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max)	0.059" (1.50mm)
Standard Package	1,200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857208-744029100
Ultra Librarian 3D Model	Ultra Librarian 744029100 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc is a drum core, wirewound fixed inductor with a size of 0.110" L x 0.110" W (2.80mm x 2.80mm).

Inductance: 10 μH
Tolerance: ±30%
Shielded: Yes
Operating Temperature Range: -40°C to 125°C
Mounting: Surface Mount
Package: Nonstandard
DC Resistance (DCR): 470mOhm max
Current Rating: 650 mA
Core Material: Ferrite
Frequency Self-Resonant: 40MHz
