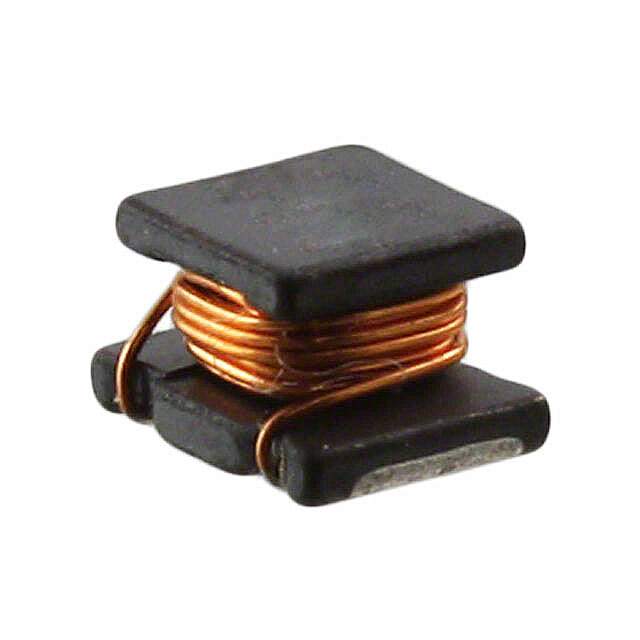

Same model may have multiple batches, images only for reference.

744032002

Name: 744032002
Brand: Wurth Electronics Inc
SKU: 1327589
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744032002
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 620MA 150MOHM SM / 2.2 µH Unshielded Drum Core, Wirewound Inductor 620 mA 150mOhm Max 1210 (3225 Metric)
Datasheet	744032002 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	620 mA
Current - Saturation (Isat)	1.8A
Shielding	Unshielded
DC Resistance (DCR)	150mOhm Max
Q @ Freq	20 @ 1MHz
Frequency - Self Resonant	50MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.091" (2.30mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3044-1,732-3044-2,732-3044-6
Standard Package	2,000
Win Source Part Number	1327589-744032002
Ultra Librarian 3D Model	Ultra Librarian 744032002 CAD Model

Alternative Products

Description

Würth Elektronik offers this fixed inductor, which has a 2.2μH inductance and a tolerance of ±20%.

Type: Wirewound, drum core
Shielding: Unshielded
Package: 1210 (3225 Metric)
Standard Package: 2,000 units
DC Resistance: 150mOhm Max
Current Rating: 620mA
Operating Temperature Range: -40°C to 125°C
