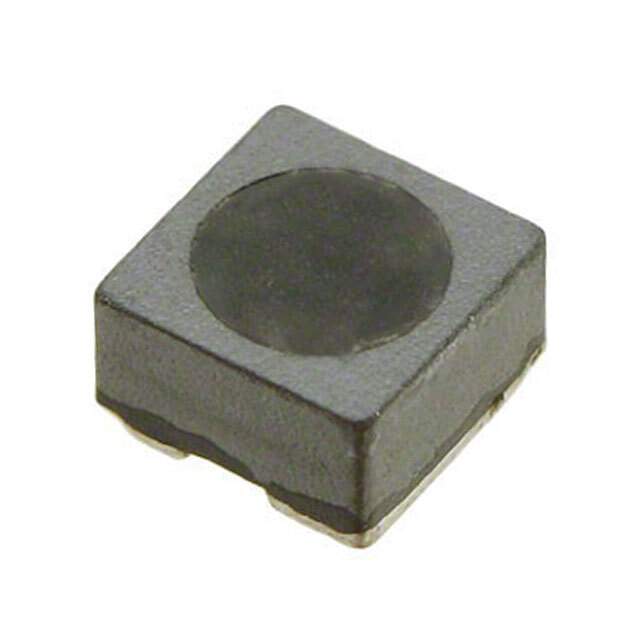

Same model may have multiple batches, images only for reference.

74404300082

Name: 74404300082
Brand: Wurth Electronics Inc
SKU: 857237
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74404300082
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 820NH 3.5A 18 MOHM SMD
Datasheet	74404300082 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	820 nH
Tolerance	±30%
Current Rating (Amps)	3.5 A
Current - Saturation (Isat)	3.7A
Shielding	Shielded
DC Resistance (DCR)	18mOhm Max
Frequency - Self Resonant	170MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1919 (4848 Metric)
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857237-74404300082
Ultra Librarian 3D Model	Ultra Librarian 74404300082 CAD Model

Alternative Products

Description

The 857237-74404300082 is a shielded drum core, wirewound inductor from the WE-TPC series by Wurth Electronics Inc.

Type: Fixed inductor
Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Inductance: 820 nH
Tolerance: ±30%
Height: 0.118" (3.00mm)
Current Rating: 3.5 A
Operating Temperature Range: -40°C to 125°C
