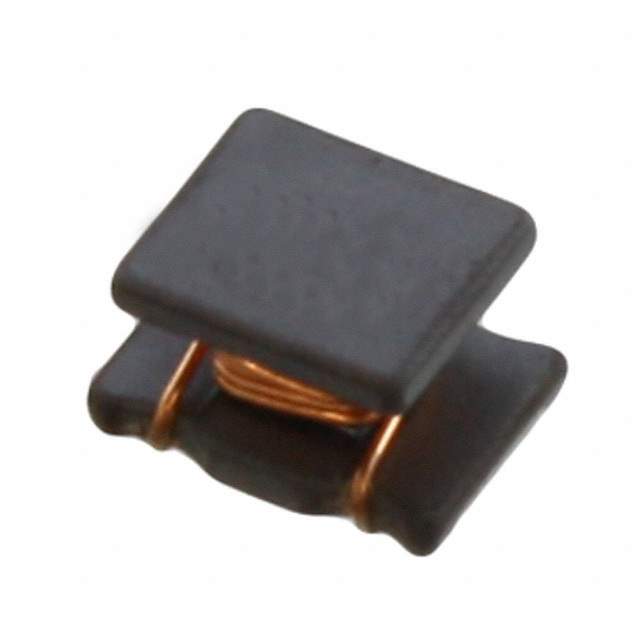

Same model may have multiple batches, images only for reference.

7440450018

Name: 7440450018
Brand: Wurth Electronics Inc
SKU: 1381097
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	7440450018
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1.8UH 1.7A 100MOHM SMD / 1.8 µH Unshielded Drum Core, Wirewound Inductor 1.7 A 100mOhm Max 1812 (4532 Metric)
Datasheet	7440450018 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LQ
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1.8 µH
Tolerance	±20%
Current Rating (Amps)	1.7 A
Current - Saturation (Isat)	3.5A
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	45 @ 1MHz
Frequency - Self Resonant	100MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.114" (2.90mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	500 pcs
Win Source Part Number	1381097-7440450018
Ultra Librarian 3D Model	Ultra Librarian 7440450018 CAD Model

Alternative Products

Description

The WE-LQ series inductor is a high-quality electronic component manufactured by Wurth Electronics Inc.

Category: Fixed Inductors
Inductor Type: Drum Core, Wirewound
Shielding: Unshielded
Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Inductance: 1.8 µH
Maximum Seated Height: 0.114" (2.90mm)
Mounting Type: Surface Mountable
Package: 1812 (4532 Metric)
DC Resistance (DCR): 100mOhm max
Operating Temperature: -40°C to 125°C
Current Rating: 1.7 A
Saturation Current (Isat): 3.5A
