Same model may have multiple batches, images only for reference.

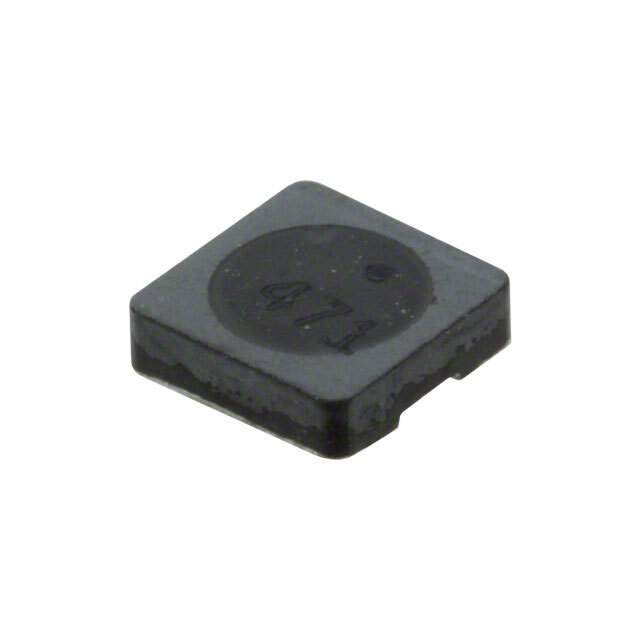

744052002 Real Image
Same model may have multiple batches, images only for reference.

744052002

Part No 744052002
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.5UH 2.4A 40 MOHM SMD / 2.5 µH Shielded Drum Core, Wirewound Inductor 2.4 A 40mOhm Max 2323 (5858 Metric)
Datasheet
744052002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.5 µH
Tolerance ±30%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 40mOhm Max
Frequency - Self Resonant 85MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1028-6,732-1028-1,732-1028-2
Standard Package 500
Win Source Part Number 1329304-744052002
Ultra Librarian 3D Model Ultra Librarian 744052002 CAD Model

Description

The Würth Elektronik 1329304-744052002 is a fixed inductor that is shielded and has a drum core, wirewound type.

  • Packaging: Reel-TR
  • Size/Dimension: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Inductance: 2.5 µH
  • Maximum Seated Height: 0.079" (2.00mm)
  • Package: 500
  • Mounting Type: Surface Mount
  • Tolerance: ±30%
  • Material-Core: Ferrite
  • Frequency-Self Resonant: 85MHz
  • DC Resistance (DCR): 40mOhm max
  • Operating Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating (amps): 2.4 A
  • Inductance Frequency-Test: 100 kHz
  • ROHS3 Compliant: Yes
  • Current-Saturation (Isat): 2.7A
