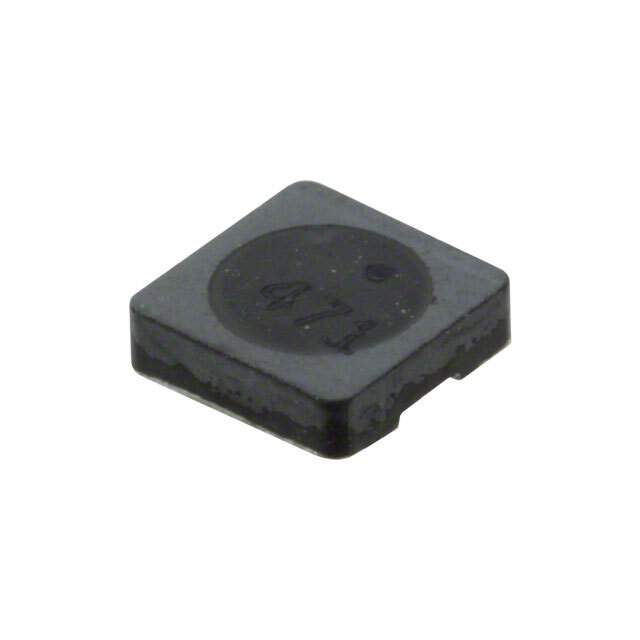

7440520039 Real Image
Same model may have multiple batches, images only for reference.

7440520039

Part No 7440520039
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-TPC | FIXED IND 3.9UH 2A 55 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Tape and Reel
Type Wirewound
Material - Core Ferrite
Inductance 3.9μH
Tolerance ±30%
Current Rating (Amps) 2A
Current - Saturation 2.1A
Shielding Shielded
DC Resistance (DCR) 55mOhm Max
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 2323 (5858 Metric)
Parts Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1129883-7440520039
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7440520039 CAD Model

Description

The Wurth Electronics Inc. 7440520039 is a wirewound inductor with a 3.9μH inductance.

  • Inductance: 3.9μH
  • Shielded: yes
  • Current Rating: 2A
  • Operating Temperature: -40°C ~ 125°C
  • Manufacturer Homepage: www.we-online.com
  • Supply and Demand Status: limited
  • Package: 2323 (5858 Metric)
  • Height: 0.079" (2.00mm)
  • Tolerance: ±30%
  • DC Resistance (DCR): 55mOhm Max
  • Inductance Frequency-Test: 100kHz
