Same model may have multiple batches, images only for reference.

7440620015

Name: 7440620015
Brand: Wurth Electronics Inc
SKU: 729139
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	7440620015
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	POWER-CHOKE WE-TPC \| FIXED IND 1.5UH 4.3A 18 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Wurth Electronics Inc.
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	1.5μH
Tolerance	±30%
Current Rating (Amps)	4.3A
Current - Saturation	4A
Shielding	Shielded
DC Resistance (DCR)	18mOhm Max
Frequency - Self Resonant	100MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	2727 (6868 Metric)
Parts Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum)	0.098" (2.50mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	729139-7440620015
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 7440620015 CAD Model

Alternative Products

Description

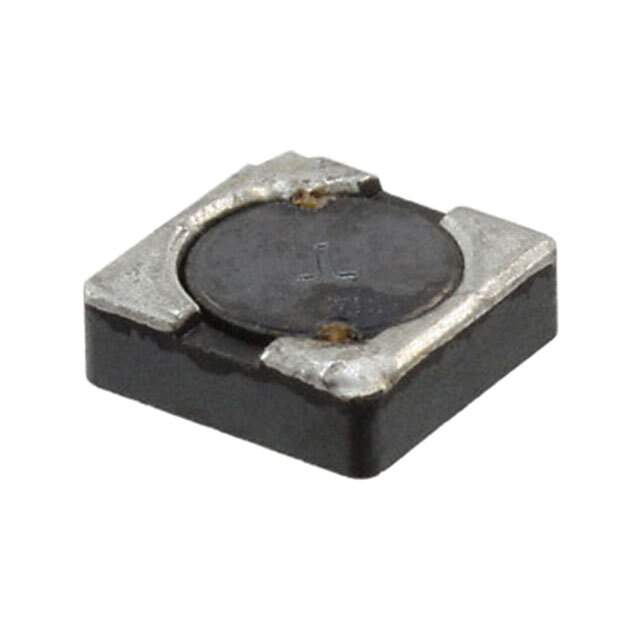

The Wurth Electronics Inc. 729139-7440620015 is a shielded wirewound inductor with an inductance of 1.5μH and a tolerance of ±30%, manufactured by Wurth Electronics Inc.

DC Resistance (DCR): 18mOhm Max
Current Rating: 4.3Amps
Application: Inductors, Coils, Chokes
Frequency Self-Resonant: 100MHz
Material: Ferrite
Mounting: Surface Mount
Height: 0.098" (2.50mm)
Package: 2727 (6868 Metric)
