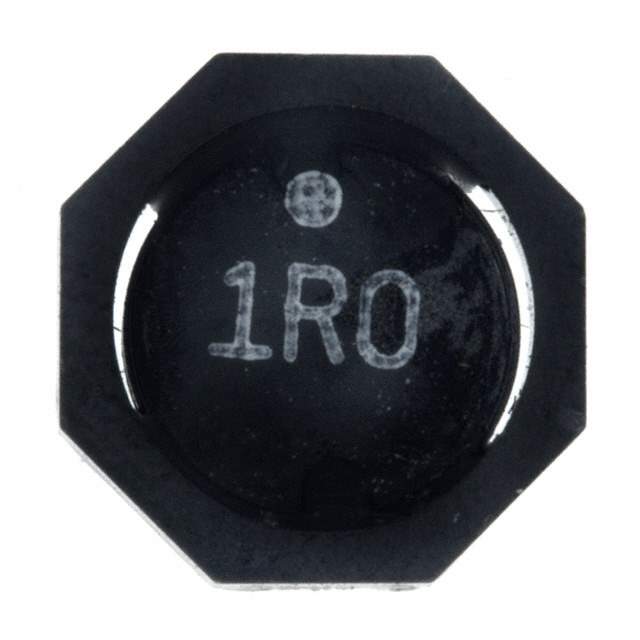

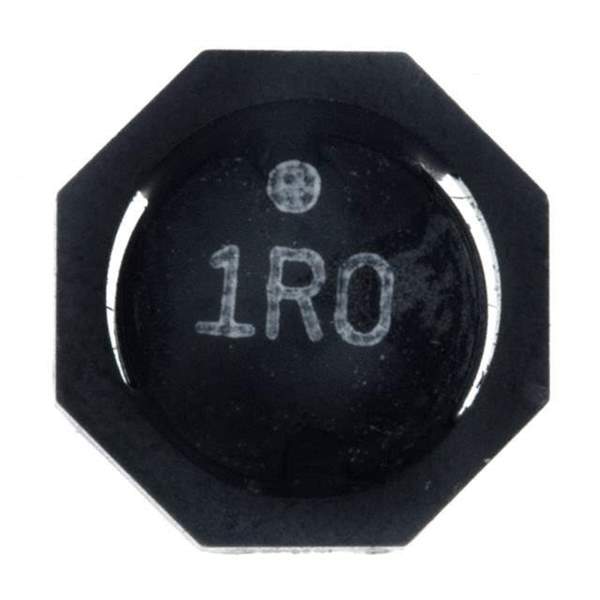

Same model may have multiple batches, images only for reference.

744065001

Name: 744065001
Brand: Wurth Electronics Inc
SKU: 857261
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744065001
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1UH 8A 6.5 MOHM SMD
Datasheet	744065001 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 µH
Tolerance	±30%
Current Rating (Amps)	8 A
Current - Saturation (Isat)	9.5A
Shielding	Shielded
DC Resistance (DCR)	6.5mOhm Max
Frequency - Self Resonant	100MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857261-744065001
Ultra Librarian 3D Model	Ultra Librarian 744065001 CAD Model

Alternative Products

Description

The 857261-744065001 is a fixed inductor from the WE-TPC series by Wurth Electronics Inc.

Core Type: Drum Core, Wirewound
Shielding: Shielding
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Inductance: 1 µH
Maximum Seated Height: 0.122" (3.10mm)
Mounting Type: Surface Mount
Package: Tape & Reel
DC Resistance (DCR): 6.5mOhm Max
Current Rating: 8 A
Operating Temperature: -40°C to 125°C
Material: Ferrite
Frequency Self-Resonant: 100MHz
Standard Package: 1,000 pcs
