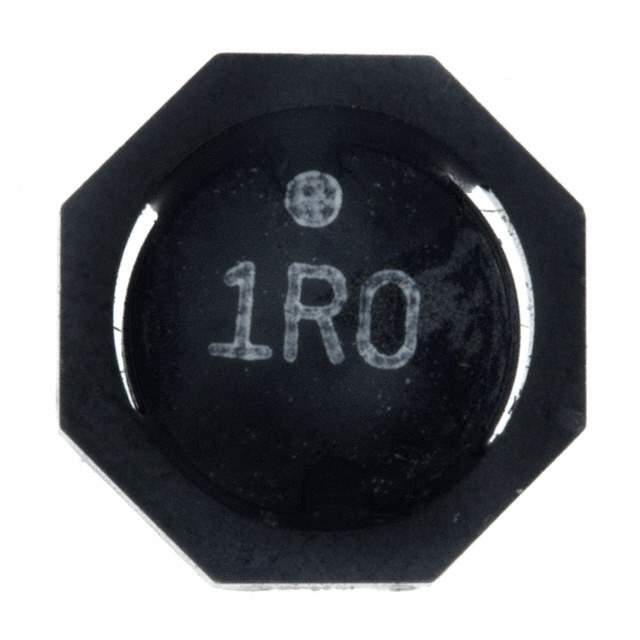

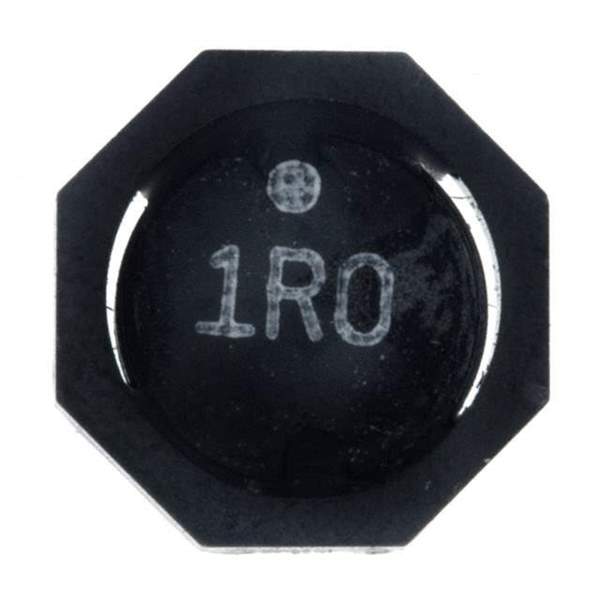

Same model may have multiple batches, images only for reference.

744065151

Name: 744065151
Brand: Wurth Electronics Inc
SKU: 1327676
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744065151
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 150UH 850MA 680MOHM SM / 150 µH Shielded Drum Core, Wirewound Inductor 850 mA 680mOhm Max Nonstandard
Datasheet	744065151 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±30%
Current Rating (Amps)	850 mA
Current - Saturation (Isat)	750mA
Shielding	Shielded
DC Resistance (DCR)	680mOhm Max
Frequency - Self Resonant	5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1070-6,732-1070-1,732-1070-2
Standard Package	1,000
Win Source Part Number	1327676-744065151
Ultra Librarian 3D Model	Ultra Librarian 744065151 CAD Model

Alternative Products

Description

The 744065151 from Würth Elektronik is a 150μH fixed inductor designed for use in applications such as power supplies and DC-DC converters.

Core Material: Ferrite
Shielding: Yes
DC Resistance: 680mΩ
Current Rating: 850mA
RoHS3: Compliant
Operating Temperature Range: -40°C to +125°C
