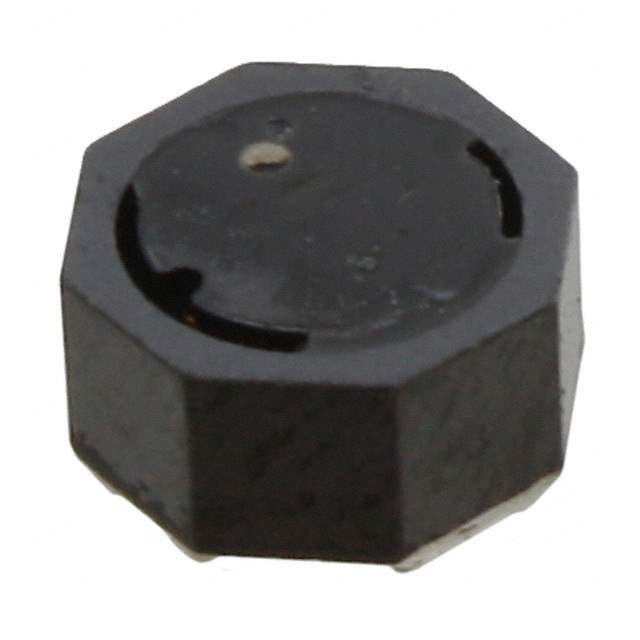

Same model may have multiple batches, images only for reference.

744071039

Name: 744071039
Brand: Wurth Electronics Inc
SKU: 857274
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744071039
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.9UH 4.9A 17 MOHM SMD
Datasheet	744071039 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	3.9 µH
Tolerance	±30%
Current Rating (Amps)	4.9 A
Current - Saturation (Isat)	4.5A
Shielding	Shielded
DC Resistance (DCR)	17mOhm Max
Frequency - Self Resonant	40MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.181" (4.60mm)
Standard Package	300 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857274-744071039
Ultra Librarian 3D Model	Ultra Librarian 744071039 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc is a drum core, wirewound inductor with a size of 0.315" L x 0.315" W (8.00mm x 8.00mm).

Shielding: Shielded
Inductance: 3.9 µH
Tolerance: ±30%
Maximum Seated Height: 0.181" (4.60mm)
DC Resistance (DCR): 17mOhm Max
Current Rating: 4.9 A
Operating Temperature: -40°C to 125°C
Material: Ferrite
Self-Resonant Frequency: 40MHz
Mounting Type: Surface Mount
Package: Nonstandard
