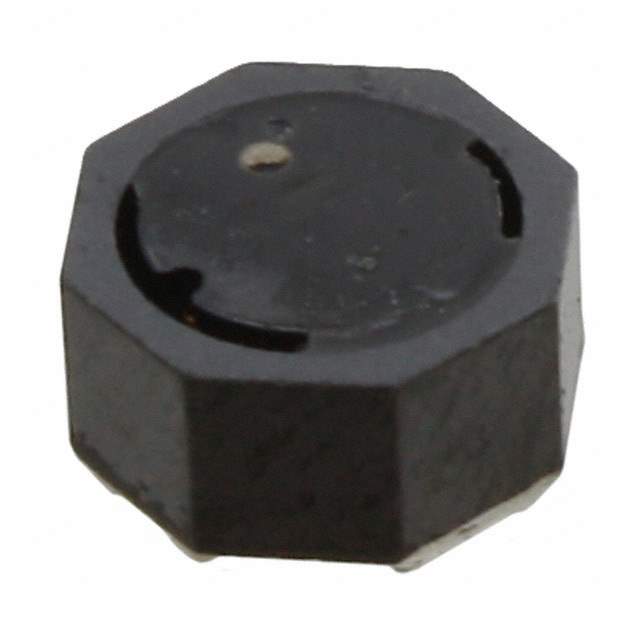

744071056 Real Image
Same model may have multiple batches, images only for reference.

744071056

Part No 744071056
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 5.6UH 4A 25 MOHM SMD / 5.6 µH Shielded Drum Core, Wirewound Inductor 4 A 25mOhm Max Nonstandard
Datasheet
744071056 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 5.6 µH
Tolerance ±30%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Frequency - Self Resonant 31MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.181" (4.60mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-3715-1,732-3715-2,732-3715-6
Standard Package 300
Win Source Part Number 1329243-744071056
Ultra Librarian 3D Model Ultra Librarian 744071056 CAD Model

Description

The Würth Elektronik 744071056 is a fixed inductor with a drum core, wirewound type and shielded shielding.

  • Package: Non-Standard
  • Size: 0.315” L x 0.315” W (8.00mm x 8.00mm)
  • Inductance: 5.6µH
  • Height: 0.181” (4.60mm)
  • Standard Package: 300
  • Mounting Type: Surface Mount
  • Tolerance: ±30%
  • Core Material: Ferrite
  • Frequency Self-Resonant: 31MHz
  • DC Resistance (DCR): 25mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Current Rating: 4A
  • RoHS3 Compliant: Yes
