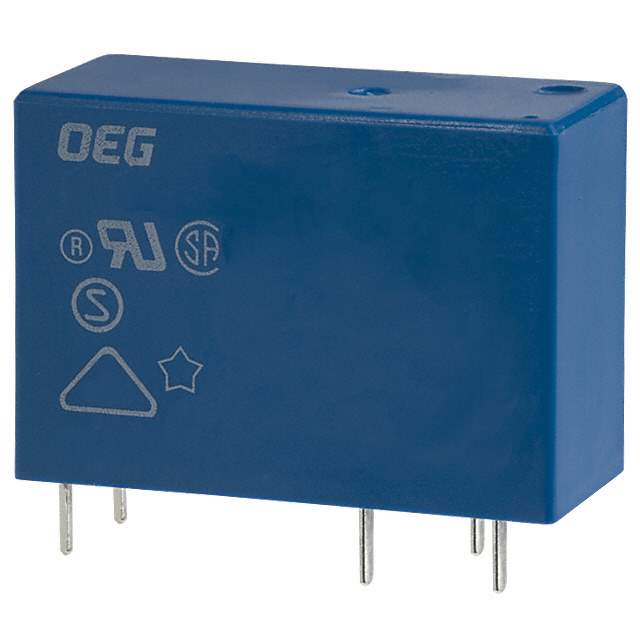

6-1419121-6

Part No 6-1419121-6
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 22.5mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 18 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 20ms
Release Time 8ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 540 mW
Coil Resistance 1.1 kOhms
Temperature Range - Operating -30°C to 70°C
Win Source Part Number 056942-6-1419121-6
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management, Automation & Process Control, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian 6-1419121-6 CAD Model

Description

Description

The 6-1419121-6 is meticulously crafted to deliver exceptional functionality, serving as a cornerstone in the development of advanced technological solutions.

Applications

  • Data communication systems
  • Precision instrumentation
  • Aerospace technology
  • High-frequency electronics

Features and Benefits

  • Reliable performance with high precision
  • Reduced power consumption for efficiency
  • Compatibility with cutting-edge systems
  • Durable build for extended lifespan

Additional Details

This component is crafted to support high-end applications, ensuring both performance and reliability are uncompromised.
