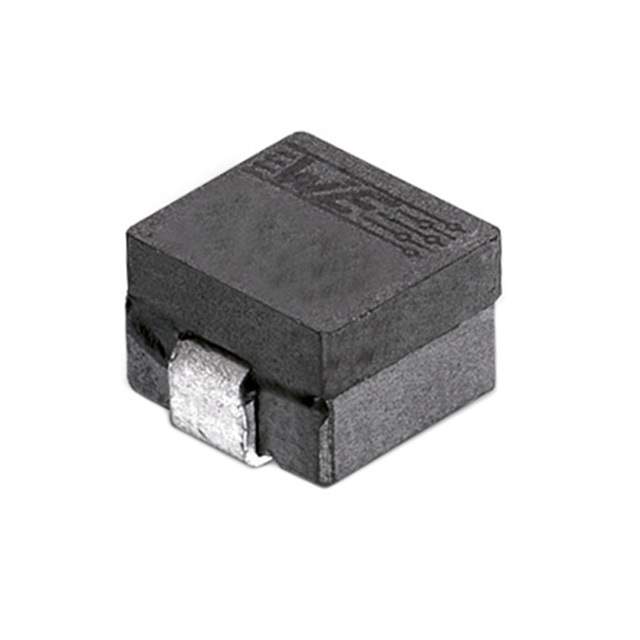

Same model may have multiple batches, images only for reference.

7443082010

Name: 7443082010
Brand: Wurth Electronics Inc
SKU: 1381102
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7443082010
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 100NH 60A 0.18MOHM SMD / 100 nH Shielded Drum Core, Wirewound Inductor 60 A 0.18mOhm Nonstandard
Datasheet	7443082010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCM
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	100 nH
Tolerance	±10%
Current Rating (Amps)	60 A
Current - Saturation (Isat)	100A
Shielding	Shielded
DC Resistance (DCR)	0.18mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	1088
Size / Dimension	0.402" L x 0.319" W (10.20mm x 8.10mm)
Height - Seated (Max)	0.315" (8.00mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	600 pcs
Win Source Part Number	1381102-7443082010
Ultra Librarian 3D Model	Ultra Librarian 7443082010 CAD Model

Alternative Products

Description

The WE-HCM series is a set of fixed inductors designed with a drum core and wirewound construction manufactured by Wurth Electronics Inc.

Size: 0.402" L x 0.319" W (10.20mm x 8.10mm)
Height: 0.315" (8.00mm)
Mounting Type: Surface Mount
Inductance: 100nH
Tolerance: ±10%
DC Resistance: 0.18mOhm
Current Rating: 60A
Package: Tape and Reel
Pieces per Package: 600
Operating Temperature: -40°C to 125°C
REACH: Unaffected
Moisture Sensitivity Level: 1 (unlimited)
