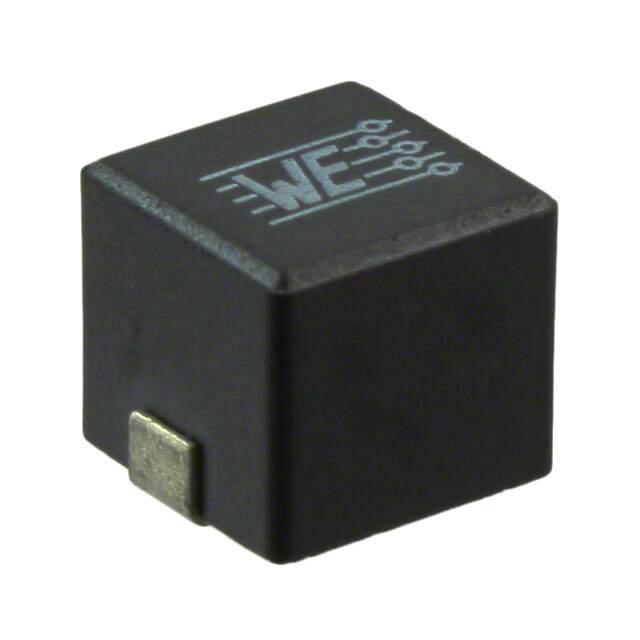

Same model may have multiple batches, images only for reference.

7443340030

Name: 7443340030
Brand: Wurth Electronics Inc
SKU: 1327575
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7443340030
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 300NH 20.5A 2.7MOHM SM / 300 nH Shielded Drum Core, Wirewound Inductor 20.5 A 2.7mOhm Max Nonstandard
Datasheet	7443340030 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	300 nH
Tolerance	±20%
Current Rating (Amps)	20.5 A
Current - Saturation (Isat)	36A
Shielding	Shielded
DC Resistance (DCR)	2.7mOhm Max
Frequency - Self Resonant	272MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.331" L x 0.311" W (8.40mm x 7.90mm)
Height - Seated (Max)	0.295" (7.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-2159-1,732-2159-2,732-2159-6
Standard Package	500
Win Source Part Number	1327575-7443340030
Ultra Librarian 3D Model	Ultra Librarian 7443340030 CAD Model

Alternative Products

Description

The Würth Elektronik 1327575-7443340030 is a shielded, surface mount, drum core, wirewound inductor with a size/dimension of 0.331" L x 0.311" W (8.40mm x 7.90mm).

Inductance: 300 nH
Tolerance: ±20%
Standard Package: 500
Current Rating (Amps): 20.5A
Temperature Range: -40°C ~ 125°C
