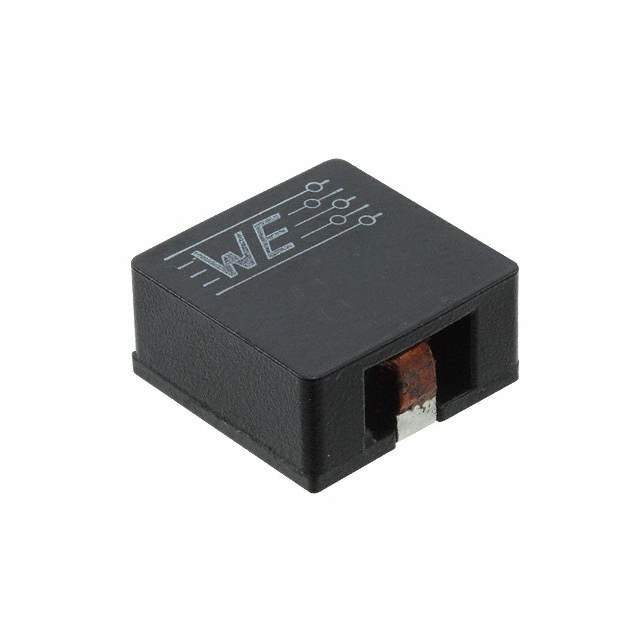

Same model may have multiple batches, images only for reference.

74435588200

Name: 74435588200
Brand: Wurth Electronics Inc
SKU: 811198
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74435588200
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 82UH 7A 30.4 MOHM SMD / WE-HCI SMD Flat Wire High Current Inductor
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	82μH
Tolerance	±20%
Current Rating (Amps)	7A
Current - Saturation	8.5A
Shielding	Shielded
DC Resistance (DCR)	30.4mOhm
Frequency - Self Resonant	4.4MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Supplier Device Package	2212
Dimension	0.886" L x 0.866" W (22.50mm x 22.00mm)
Height - Seated (Maximum)	0.488" (12.40mm)
Manufacturer Pack Quantity	120
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	811201-74435588200
Ultra Librarian 3D Model	Ultra Librarian 74435588200 CAD Model

Alternative Products

Description

The Würth Elektronik 811201-74435588200 is a shielded wirewound inductor.

Inductance: 82μH
Tolerance: ±20%
Current Saturation: 8.5A
DC Resistance (DCR): 30.4mOhm
Self-Resonant Frequency: 4.4MHz
Temperature Range: -40°C to 125°C
Mounting Style: SMD
Packaging: Reel
Dimension: 0.886" L x 0.866" W (22.50mm x 22.00mm)
Height-Seated Maximum: 0.488" (12.40mm)
Popularity: Medium
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 120
