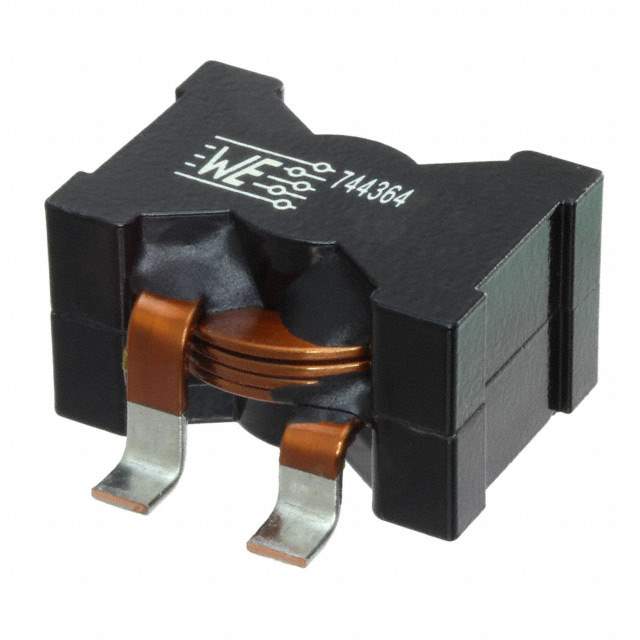

Same model may have multiple batches, images only for reference.

74436410150

Get a Quote

Part No	74436410150
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 1.5UH 36A 1.441MOHM SM / 1.5 µH Shielded Drum Core, Wirewound Inductor 36 A 1.441mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Tray
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	1.5 µH
Tolerance	±15%
Current Rating (Amps)	36 A
Current - Saturation (Isat)	125A
Shielding	Shielded
DC Resistance (DCR)	1.441mOhm Max
Frequency - Self Resonant	43.24MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	2815
Size / Dimension	1.102" L x 0.764" W (28.00mm x 19.40mm)
Height - Seated (Max)	0.606" (15.40mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-11528
Standard Package	20
Win Source Part Number	1329015-74436410150
Ultra Librarian 3D Model	Ultra Librarian 74436410150 CAD Model

Alternative Products

Description

The Würth Elektronik 1329015-74436410150 is a fixed inductor that belongs to the category of inductors, coils, and chokes.

Packaging: Tray
Type: Drum Core, Wirewound
Shielding: Shielding
Size/Dimension: 1.102" L x 0.764" W (28.00mm x 19.40mm)
Inductance: 1.5 µH
Maximum Seated Height: 0.606" (15.40mm)
Standard Package: 20
Mounting: Surface Mount
Tolerance: ±15%
Core Material: Manganese Zinc Ferrite (MnZn)
Frequency Self-Resonant: 43.24MHz
DC Resistance (DCR): 1.441mOhm Max
Supplier Device Package: 2815
Operating Temperature: -40°C to 125°C
Current Rating: 36 A
Current Saturation (Isat): 125A
ROHS3 Compliant: ROHS3 Compliant
