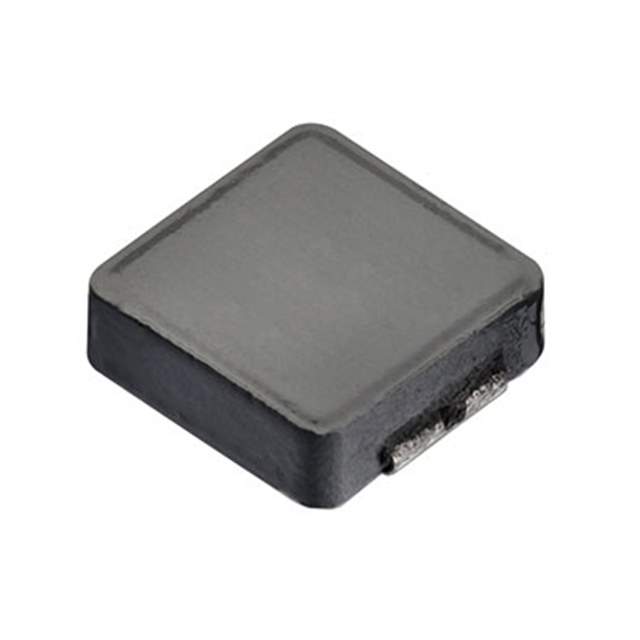

Same model may have multiple batches, images only for reference.

744373560022

Name: 744373560022
Brand: Wurth Electronics Inc
SKU: 857404
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744373560022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 220NH 20A 1.61MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LHMI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Iron Powder
Inductance	220 nH
Tolerance	±20%
Current Rating (Amps)	20 A
Current - Saturation (Isat)	40A
Shielding	Shielded
DC Resistance (DCR)	1.61mOhm Max
Frequency - Self Resonant	110MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	8030
Size / Dimension	0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857404-744373560022
Ultra Librarian 3D Model	Ultra Librarian 744373560022 CAD Model

Alternative Products

Description

The WE-LHMI series from Wurth Electronics Inc is a shielded fixed inductor with a molded construction.

Series: WE-LHMI
Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
Inductance: 220 nH
Maximum Seated Height: 0.118" (3.00mm)
Tolerance: ±20%
DC Resistance (DCR): 1.61mOhm Max
Operating Temperature: -40°C to 125°C
Product Status: Active
Current Rating: 20 A
Saturation Current (Isat): 40A
Core Material: Iron powder
Self-Resonant Frequency: 110MHz
Standard Package: 1,000 pcs
