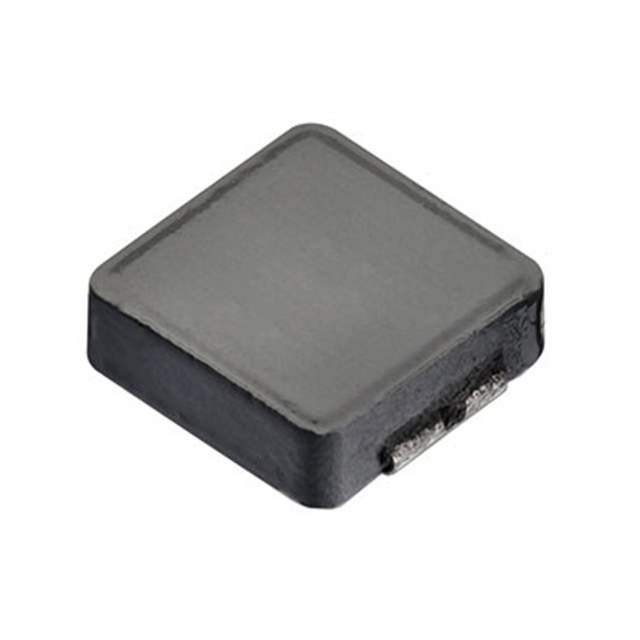

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 330 nH
Tolerance ±20%
Current Rating (Amps) 16 A
Current - Saturation (Isat) 39A
Shielding Shielded
DC Resistance (DCR) 2.57mOhm Max
Frequency - Self Resonant 95MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8030
Size / Dimension 0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857405-744373560033
Ultra Librarian 3D Model Ultra Librarian 744373560033 CAD Model

Description

The 857405-744373560033 is a fixed inductor from the WE-LHMI series by Wurth Electronics Inc.

  • Series: WE-LHMI
  • Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
  • Inductance: 330 nH
  • Maximum Seated Height: 0.118" (3.00mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 2.57mOhm Max
  • Temperature Range: -40°C to 125°C
  • Current Rating: 16 A
  • Saturation Current (Isat): 39A
