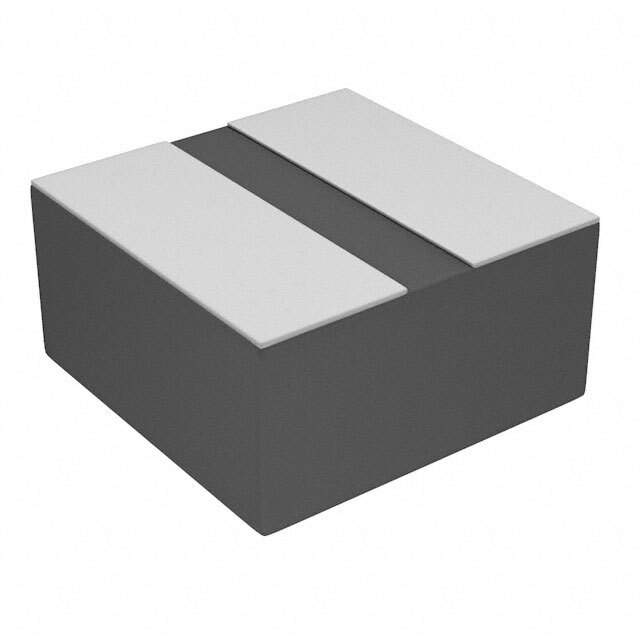

Same model may have multiple batches, images only for reference.

74438335150

Name: 74438335150
Brand: Wurth Electronics Inc
SKU: 857440
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74438335150
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 15UH 650MA 830MOHM SMD
Datasheet	74438335150 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-MAPI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal Composite
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	650 mA
Current - Saturation (Isat)	1.71A
Shielding	Shielded
DC Resistance (DCR)	830mOhm Max
Frequency - Self Resonant	14MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1212 (3030 Metric)
Supplier Device Package	3015
Size / Dimension	0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)	0.059" (1.50mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857440-74438335150
Ultra Librarian 3D Model	Ultra Librarian 74438335150 CAD Model

Alternative Products

Description

The WE-MAPI series from Wurth Electronics Inc offers a shielded fixed inductor with a molded package.

Size: 0.118" L x 0.118" W (3.00mm x 3.00mm)
Inductance: 15 μH
Maximum Seated Height: 0.059" (1.50mm)
Mounting Type: Surface Mount
Package: 1212 (3030 Metric)
DC Resistance (DCR): 830mOhm Max
Current Rating: 650 mA
Temperature Range: -40°C to 125°C
AEC-Q200: Rated
Core Material: Metal composite
Self-Resonant Frequency: 14MHz
Packaging: Tape and reel (1,000 pieces)
