Same model may have multiple batches, images only for reference.

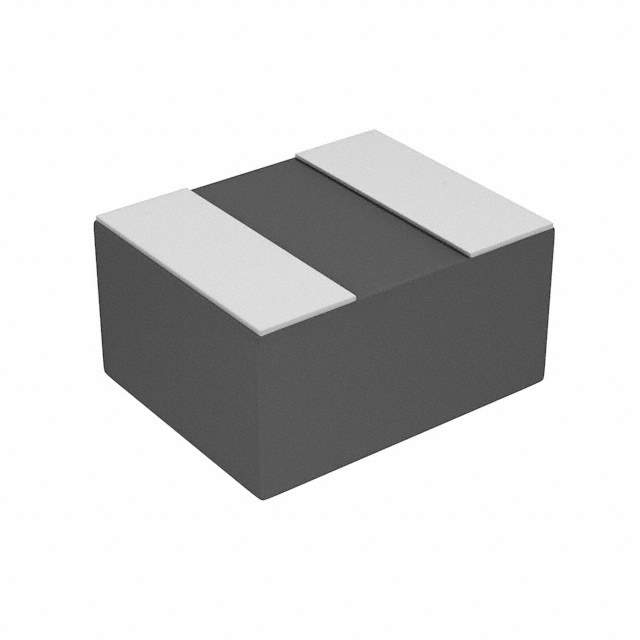

744383430056 Real Image
Same model may have multiple batches, images only for reference.

744383430056

Part No 744383430056
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 560NH 2.1A 73 MOHM SMD / WE-MAPI SMD Shielded Power Inductor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Molded
Material - Core Metal Composite
Inductance 560nH
Tolerance ±30%
Current Rating (Amps) 2.1A
Current - Saturation 5A
Shielding Shielded
DC Resistance (DCR) 73mOhm Max
Frequency - Self Resonant 135MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 0806 (2016 Metric)
Supplier Device Package 2010
Dimension 0.079" L x 0.063" W
Height - Seated (Maximum) 0.039" (1.00mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804722-744383430056
Ultra Librarian 3D Model Ultra Librarian 744383430056 CAD Model

Description

The 744383430056 from Würth Elektronik is a balanced supply and demand electronic component.
