Same model may have multiple batches, images only for reference.

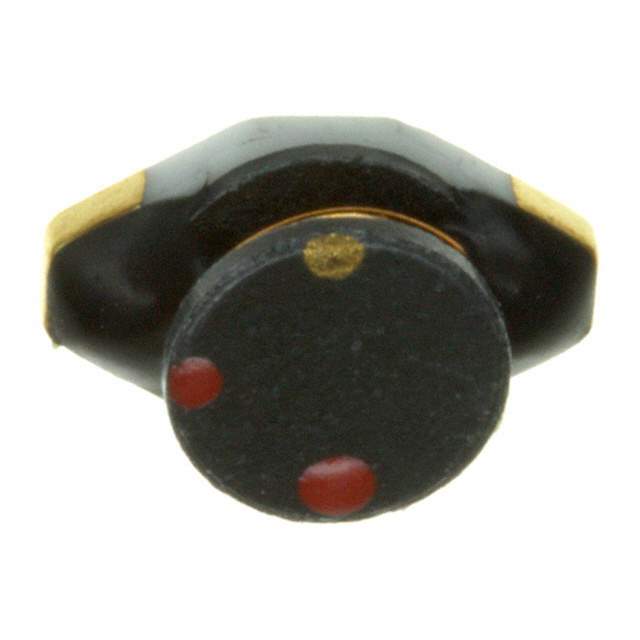

74455022 Real Image
Same model may have multiple batches, images only for reference.

74455022

Part No 74455022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD 4 | FIXED IND 2.2UH 2.4A 70 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 2.4A
Current - Saturation 2.3A
Shielding Unshielded
DC Resistance (DCR) 70mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Maximum) 0.115" (2.92mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130001-74455022
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 74455022 CAD Model

Description

The Wurth Electronics Inc. 1130001-74455022 is a wirewound inductor.

  • Manufacturer: Wurth Electronics Inc.
  • Type: Wirewound inductor
  • Inductance: 2.2μH
  • Current Rating: 2.4A
  • Suitable for: Use in various electronic applications such as power supplies, DC-DC converters, and automotive systems
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Core Material: Ferrite
  • DC Resistance: Low DC resistance
