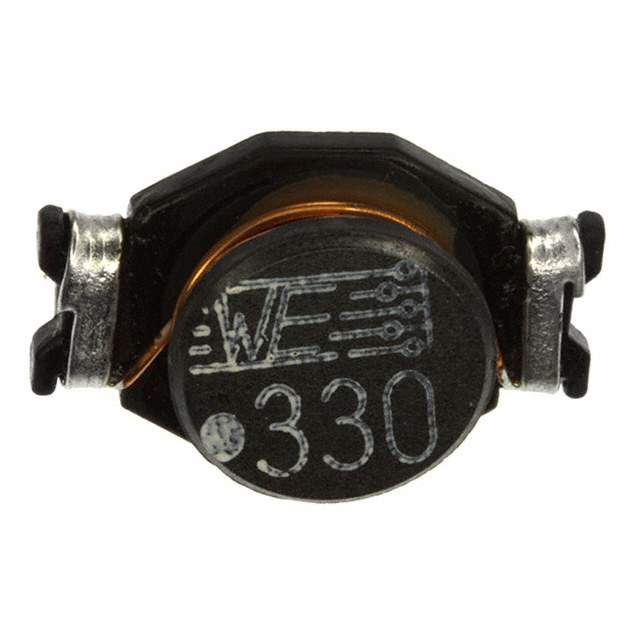

Same model may have multiple batches, images only for reference.

74457133

Name: 74457133
Brand: Wurth Electronics Inc
SKU: 857463
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74457133
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 33UH 3.4A 70 MOHM SMD
Datasheet	74457133 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD4
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±15%
Current Rating (Amps)	3.4 A
Current - Saturation (Isat)	5.5A
Shielding	Unshielded
DC Resistance (DCR)	70mOhm Max
Frequency - Self Resonant	11.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Max)	0.307" (7.80mm)
Standard Package	250 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857463-74457133
Ultra Librarian 3D Model	Ultra Librarian 74457133 CAD Model

Alternative Products

Description

The WE-PD4 is a drum core, wirewound inductor from Wurth Electronics Inc.

Series: WE-PD4
Size: 0.866" L x 0.591" W (22.00mm x 15.00mm)
Inductance: 33 µH
Shielding: Unshielded
Packaging: Tape & reel
Maximum Seated Height: 0.307" (7.80mm)
DC Resistance (DCR): 70mOhm Max
Operating Temperature: -40°C to 125°C
Current Rating: 3.4 A
Saturation Current: 5.5A
Status: Active
Standard Package: 250 pcs
