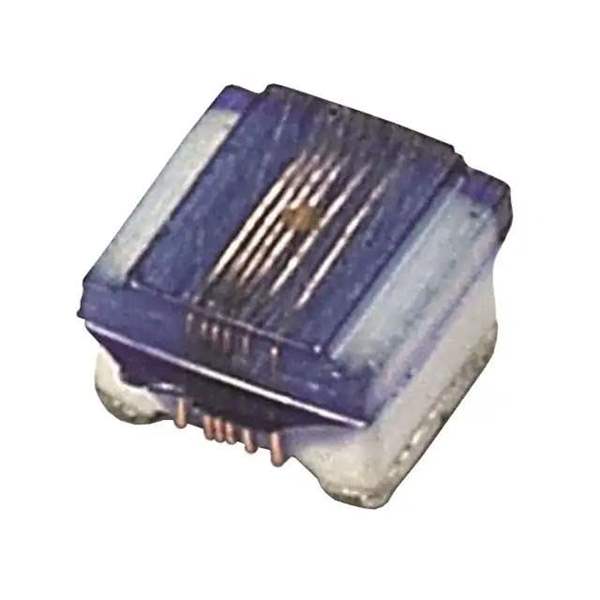

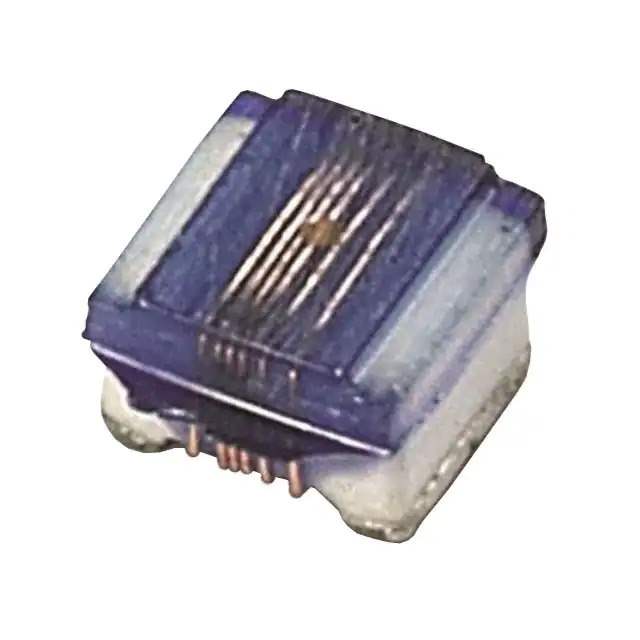

Same model may have multiple batches, images only for reference.

744761036A

Name: 744761036A
Brand: Wurth Electronics Inc
SKU: 857489
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744761036A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.6NH 700MA 60MOHM SMD
Datasheet	744761036A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	3.6 nH
Tolerance	±0.2nH
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	22 @ 250MHz
Frequency - Self Resonant	5.9GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max)	0.049" (1.25mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857489-744761036A
Ultra Librarian 3D Model	Ultra Librarian 744761036A CAD Model

Alternative Products

Description

The WE-KI series from Wurth Electronics Inc offers the WE-KI drum core wirewound inductor, designed for various electronic applications.

Size: 0.063" L x 0.041" W (1.60mm x 1.05mm)
Inductance: 3.6 nH
Height: 0.049" (1.25mm)
Shielding: Unshielded
Package: Tape and reel
Tolerance: ±0.2nH
Q Value: 22 @ 250MHz
Temperature Range: -40°C to 125°C
Standard Package: 3,000 pcs
