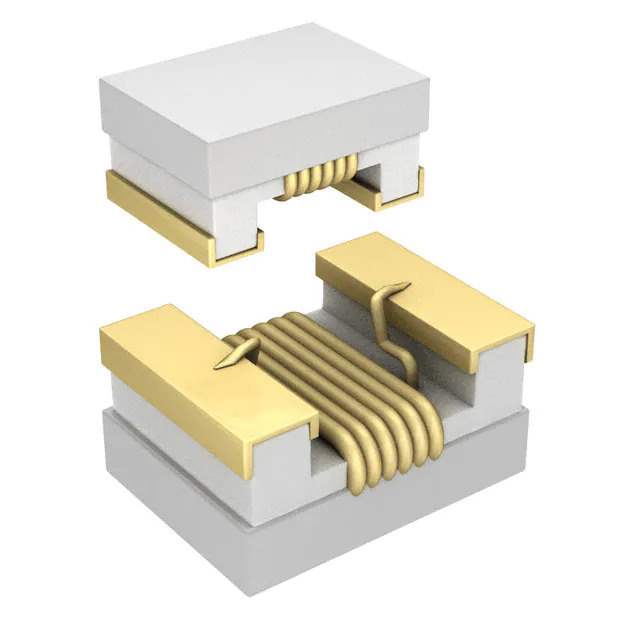

Same model may have multiple batches, images only for reference.

744761112C

Name: 744761112C
Brand: Wurth Electronics Inc
SKU: 857494
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744761112C
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 12NH 700MA 100MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	12 nH
Tolerance	±5%
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	32 @ 250MHz
Frequency - Self Resonant	4GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.065" L x 0.045" W (1.65mm x 1.15mm)
Height - Seated (Max)	0.043" (1.10mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857494-744761112C
Ultra Librarian 3D Model	Ultra Librarian 744761112C CAD Model

Alternative Products

Description

The WE-KI series from Wurth Electronics Inc is a drum core, wirewound inductor.

Shielding: Unshielded
Size: 0.065" L x 0.045" W (1.65mm x 1.15mm)
Inductance: 12 nH
Tolerance: ±5%
Maximum Seated Height: 0.043" (1.10mm)
DC Resistance (DCR): 100mOhm Max
Operating Temperature: -40°C to 125°C
Current Rating: 700 mA
Saturation Current (Isat): - (not specified)
Mounting: Surface mount applications
Package: 0603 (1608 Metric)
