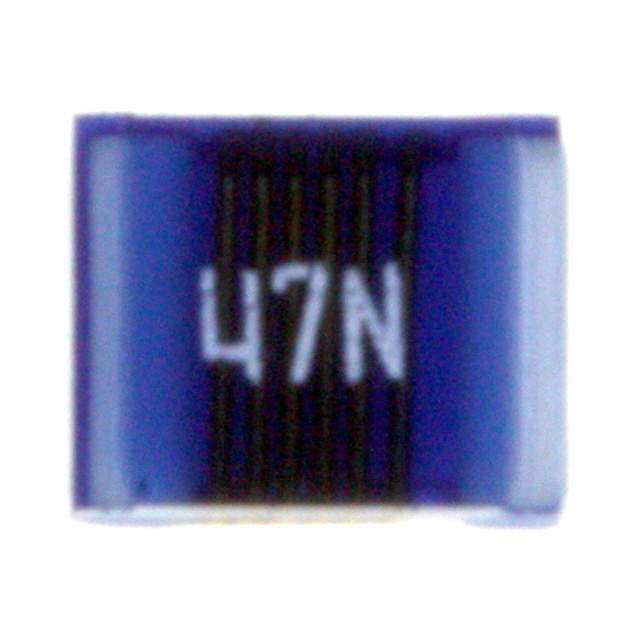

744762147A Real Image
Same model may have multiple batches, images only for reference.

744762147A

Part No 744762147A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47NH 1A 100 MOHM SMD
Datasheet
744762147A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ceramic
Inductance 47nH
Tolerance ±5%
Current Rating 1A
DC Resistance (DCR) 100 mOhm Max
Q @ Freq 60 @ 350MHz
Frequency - Self Resonant 1.5GHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.075" (1.90mm)
Win Source Part Number 103197-744762147A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 744762147A CAD Model

Description

744762147A - Reliable Inductor for Power Applications

The 744762147A is specifically developed for high-power applications. It guarantees consistent performance and reliability even under prolonged operational stress, making it ideal for power management systems.

  • Applications/Projects:
    • Electric Vehicles
    • Renewable Energy Systems
    • Heavy Machinery
  • Features and Benefits:
    • Superior power handling with minimal loss
    • Robust construction for extreme conditions
    • High efficiency at elevated temperatures
  • Additional Details:
    • Inductor design supports scalability
    • Contributes to heightened power conversion efficiency
    • Available with various mounting options
