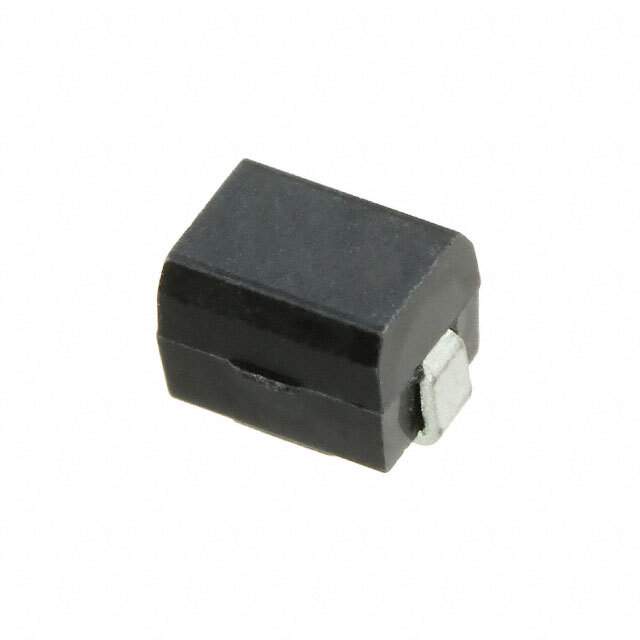

Same model may have multiple batches, images only for reference.

744766906

Name: 744766906
Brand: Wurth Electronics Inc
SKU: 857519
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744766906
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 6.8UH 1.025A 290 MOHM
Datasheet	744766906 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-GFH
Package	Tape & Reel
Product Status	Active
Material - Core	Iron Powder
Inductance	6.8 µH
Tolerance	±10%
Current Rating (Amps)	1.025 A
Shielding	Unshielded
DC Resistance (DCR)	290mOhm Max
Q @ Freq	30 @ 1.06MHz
Frequency - Self Resonant	42MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1.06 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	4532
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857519-744766906
Ultra Librarian 3D Model	Ultra Librarian 744766906 CAD Model

Alternative Products

Description

The WE-GFH series is a line of fixed inductors designed for electronic components.

Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height: 0.134" (3.40mm)
Mounting Type: Surface Mount
Shielding: Unshielded
Inductance: 6.8 µH
Tolerance: ±10%
DC Resistance (DCR): 290mOhm Max
Current Rating: 1.025 A
Core Material: Iron Powder
Temperature Range: -40°C to 125°C
Frequency Self-Resonant: 42MHz
