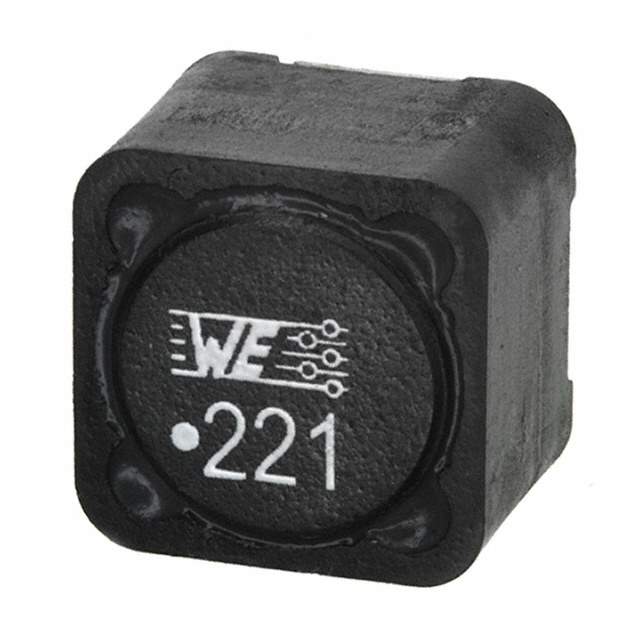

7447709221

Part No 7447709221
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD | FIXED IND 220UH 1.8A 300 MOHM
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 220μH
Tolerance ±20%
Current Rating (Amps) 1.8A
Current - Saturation 2.2A
Shielding Shielded
DC Resistance (DCR) 300mOhm Max
Frequency - Self Resonant 2.7MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130052-7447709221
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447709221 CAD Model

Description

7447709221 from Wurth Electronics Inc is a fixed inductor designed for engineers building power, filtering, and EMI-conscious circuits across industrial, automotive-adjacent, and embedded electronic systems. Components in this category are commonly selected for DC-DC converters, input/output filtering stages, energy storage networks, and noise suppression paths where predictable inductive behavior and stable sourcing matter. Wurth Electronics is widely recognized for magnetics used in demanding designs, making this part relevant for both prototype evaluation and volume production planning. Because the exact electrical specifications were not provided here, designers should confirm inductance, current rating, DCR, package style, and thermal performance in the official datasheet before design-in. The current lifecycle status for 7447709221 is information not available in the provided data, so procurement teams should verify availability directly with authorized channels. RoHS compliance status is also information not available here and should be confirmed through manufacturer documentation before release to regulated markets.
