Same model may have multiple batches, images only for reference.

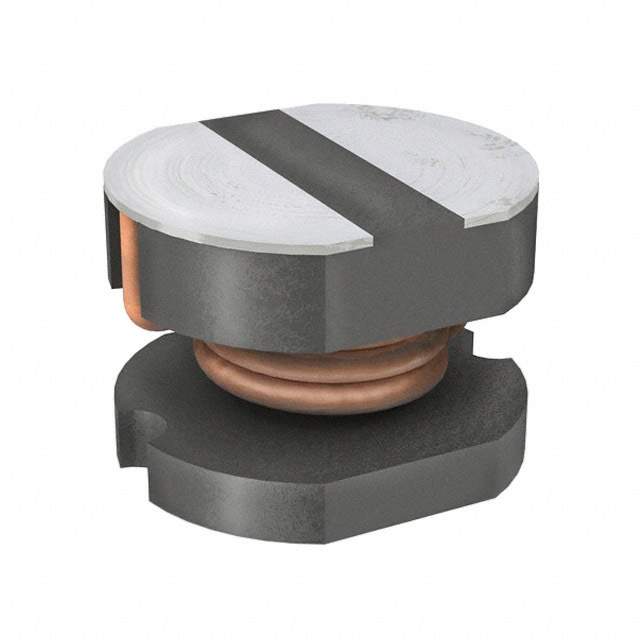

744773027 Real Image
Same model may have multiple batches, images only for reference.

744773027

Part No 744773027
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2.7UH 2.25A 79MOHM SMD
Datasheet
744773027 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD2
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.7 µH
Tolerance ±20%
Current Rating (Amps) 2.25 A
Current - Saturation (Isat) 2.97A
Shielding Unshielded
DC Resistance (DCR) 79mOhm Max
Frequency - Self Resonant 72MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857548-744773027
Ultra Librarian 3D Model Ultra Librarian 744773027 CAD Model

Description

The WE-PD2 series is a range of drum core, wirewound inductors designed for use in various electronic applications.

  • Size: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • Inductance: 2.7 μH
  • DC Resistance (DCR): 79mOhm Max
  • Shielding: Unshielded
  • Operating Temperature: -40°C to 125°C
  • Mounting Type: Surface Mount
  • Package: Nonstandard
  • Core Material: Ferrite
  • Tolerance: ±20%
  • Current Rating: 2.25 A
  • Frequency Self-Resonant: 72MHz
  • Manufacturer: Wurth Electronics Inc
  • Status: Active
