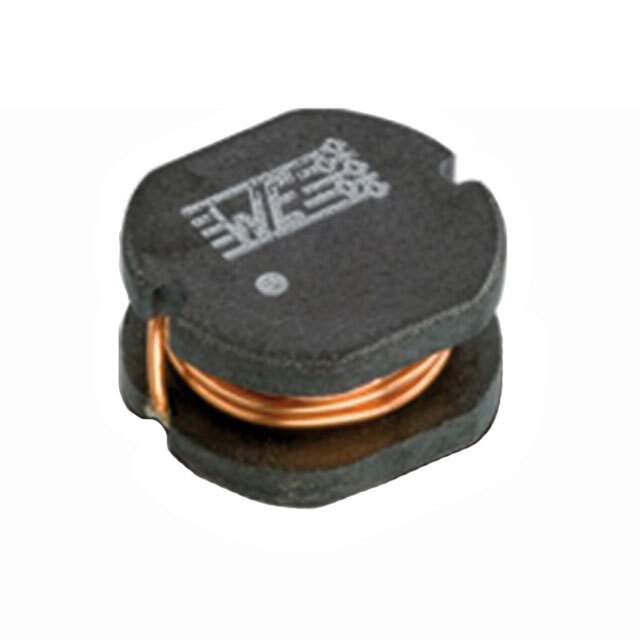

Same model may have multiple batches, images only for reference.

744773139

Get a Quote

Part No	744773139
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 39UH 770MA 587MOHM SMD / 39 µH Unshielded Drum Core, Wirewound Inductor 770 mA 587mOhm Max Nonstandard
Datasheet	744773139 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD2
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	39 µH
Tolerance	±10%
Current Rating (Amps)	770 mA
Current - Saturation (Isat)	870mA
Shielding	Unshielded
DC Resistance (DCR)	587mOhm Max
Q @ Freq	-
Frequency - Self Resonant	15MHz
Ratings	-
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max)	0.138" (3.50mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,500 pcs
Win Source Part Number	1381115-744773139
Ultra Librarian 3D Model	Ultra Librarian 744773139 CAD Model

Alternative Products

Description

The WE-PD2 series inductor is a high-quality electronic component manufactured by Wurth Electronics Inc. It is a fixed inductor designed for use in various electronic applications.

Inductor Type: Drum Core, Wirewound
Shielding: Unshielded
Size: 0.177" L x 0.157" W (4.50mm x 4.00mm)
Inductance: 39 µH
Maximum Seated Height: 0.138" (3.50mm)
Mounting Type: Surface Mount
Package / Case: Nonstandard
DC Resistance (DCR): 587mOhm max
Operating Temperature: -40°C to 125°C
Current Rating: 770 mA
Saturation Current (Isat): 870mA
