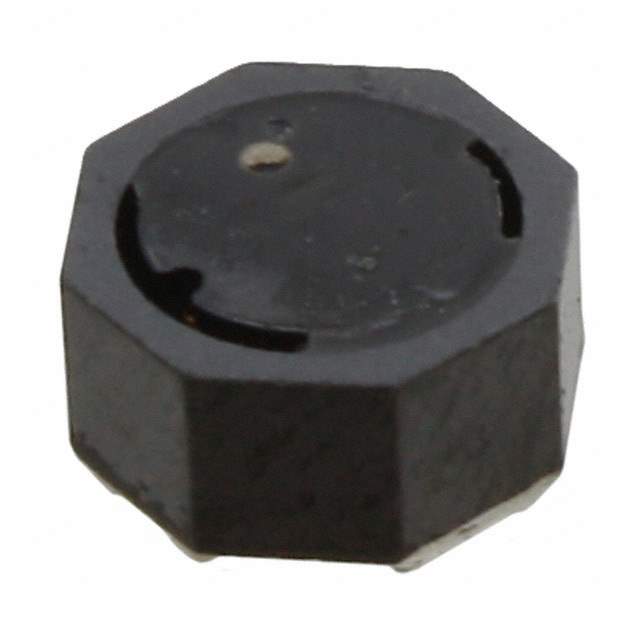

Same model may have multiple batches, images only for reference.

744071100

Get a Quote

Part No	744071100
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 3.4A 35 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 3.4 A 35mOhm Max Nonstandard
Datasheet	744071100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±30%
Current Rating (Amps)	3.4 A
Current - Saturation (Isat)	2.8A
Shielding	Shielded
DC Resistance (DCR)	35mOhm Max
Frequency - Self Resonant	24MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.181" (4.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3716-2,732-3716-1,732-3716-6
Standard Package	300
Win Source Part Number	1327708-744071100
Ultra Librarian 3D Model	Ultra Librarian 744071100 CAD Model

Alternative Products

Description

The Wurth Elektronik 1327708-744071100 is a fixed inductor that has a drum core and is wirewound.

Shielding: Shielded
Size: 0.315 inches length and width
Inductance: 10 µH
Height: 0.181 inches
Packaging: 300
Mounting: Surface mountable
Tolerance: ±30 percent
Core Material: Ferrite
Frequency: 24MHz
DC Resistance: 35mOhm max
Temperature Range: -40°C to 125°C
ECCN: EAR99
MSL Level: 1 (unlimited)
