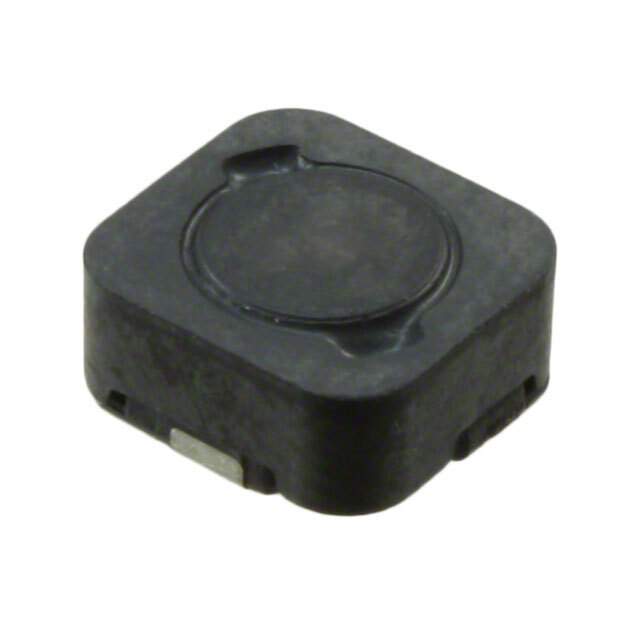

7447785122

Name: 7447785122
Brand: Wurth Electronics Inc
SKU: 809105
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447785122
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.35A 250 MOHM / POWER-CHOKE WE-PD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	22μH
Tolerance	±25%
Current Rating (Amps)	1.35A
Current - Saturation	1.1A
Shielding	Shielded
DC Resistance (DCR)	250mOhm Max
Frequency - Self Resonant	23MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum)	0.130" (3.30mm)
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809106-7447785122
Ultra Librarian 3D Model	Ultra Librarian 7447785122 CAD Model

Alternative Products

Description

The Würth Elektronik 809106-7447785122 is a wirewound inductor that is shielded to prevent interference from other components.

Inductance: 22μH ±25%
Material: Ferrite
DC Resistance (DCR): 250mOhm Max
Saturation Current: 1.1A
Temperature Range: -40°C to 125°C
Self-Resonant Frequency: 23MHz
Dimension: 0.244" L x 0.232" W (6.20mm x 5.90mm)
Height: 0.130" (3.30mm)
Package: Nonstandard
Manufacturer Pack Quantity: 1,000
Current Rating: 1.35A
Inductance Frequency-Test: 100kHz
