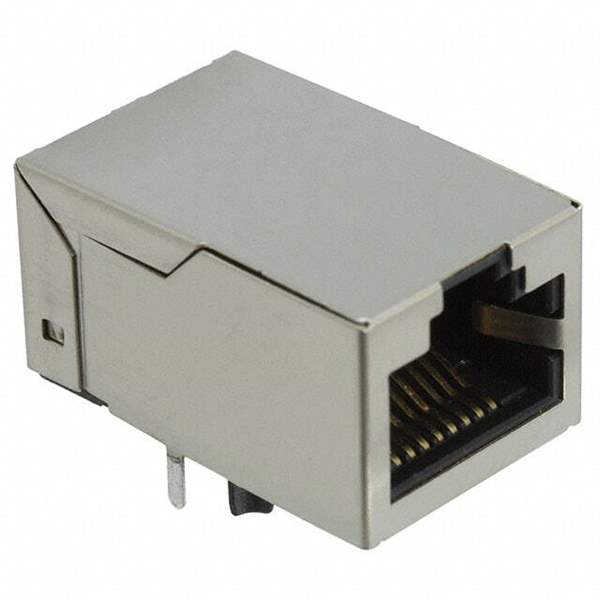

7499010001A
Same model may have multiple batches, images only for reference.

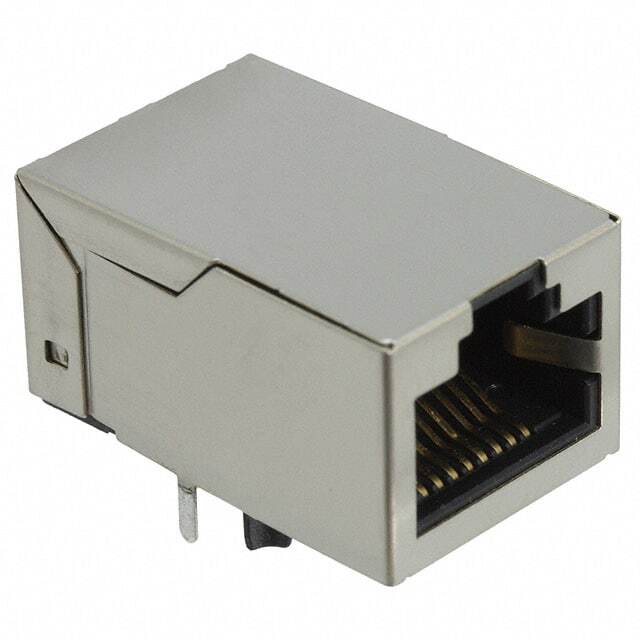

7499010001A

Part No 7499010001A
Manufacturer Wurth Electronics Inc
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
7499010001A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Wurth Electronics Inc
Series WE-RJ45 LAN
Package Tube
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.531" (13.49mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Up
Contact Material Tin
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857649-7499010001A
Ultra Librarian 3D Model Ultra Librarian 7499010001A CAD Model

Description

The WE-RJ45 LAN series from Wurth Electronics Inc. offers high-quality modular connector jacks with magnetics suitable for Ethernet applications.

  • Orientation: 90° angle (right)
  • Height Above Board: 0.531" (13.49mm)
  • Shielded: Yes
  • Package: Tube
  • Connector Type: RJ45
  • Cores per Jack: 4
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting Type: Through-Hole
  • Operating Temperature: 0°C to 70°C
  • Applications: 10/100 Base-T Ethernet, AutoMDIX
