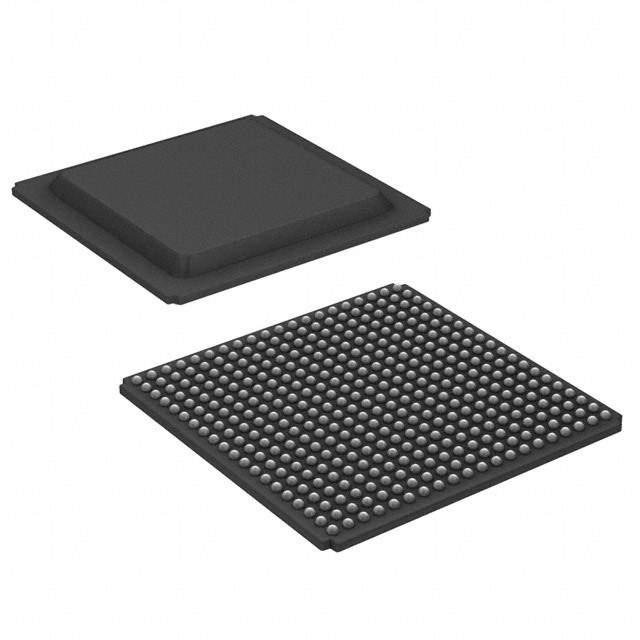

XC3S1200E-5FGG400C Real Image
Same model may have multiple batches, images only for reference.

XC3S1200E-5FGG400C

Part No XC3S1200E-5FGG400C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 304 I/O 400FBGA
Datasheet
XC3S1200E-5FGG400C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Status Active
Number of LABs/CLBs 2168
Number of Logic Elements/Cells 19512
Total RAM Bits 516096
Number of I/O 304
Number of Gates 1200000
Supply Voltage - Operating 1.14 V to 1.26 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 400-FBGA (21x21)
Win Source Part Number 214159-XC3S1200E-5FGG400C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC3S1200E
Introduction Date January 05, 1999
ECCN 3A991.d
Country of Origin China, Philippines, Republic of Korea, Taiwan
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian XC3S1200E-5FGG400C CAD Model

Description

The XC3S1200E-5FGG400C is an active integrated circuit manufactured by Xilinx Inc.

  • Mounting: SMD (SMT)
  • I/O: 304
  • LABs/CLBs: 2168
  • Logic Elements/Cells: 19512
  • Total RAM Bits: 516096
  • Gates: 1200000
  • Temperature Range: 0°C to 85°C (TJ)
  • Supply Voltage: 1.14 V to 1.26 V
  • Status: Commonly used part
  • Popularity: High
  • EOL Date: 2022
  • Country of Origin: China, Philippines, Republic of Korea, and Taiwan
