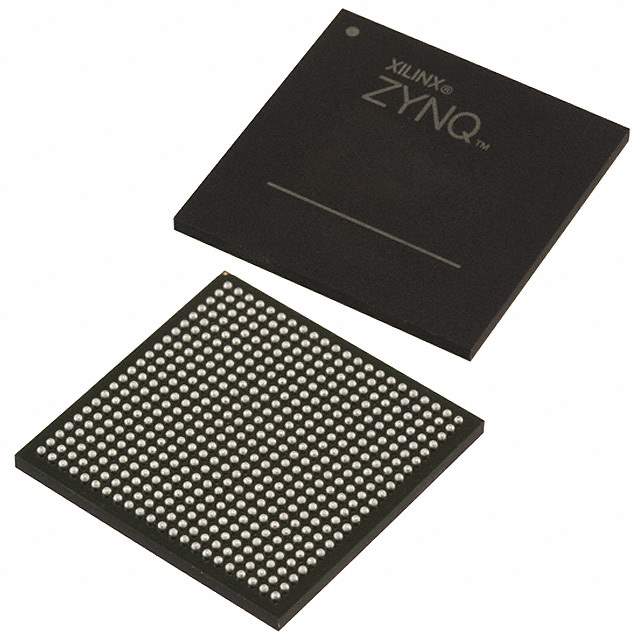

XC7Z014S-1CLG484C Real Image
Same model may have multiple batches, images only for reference.

XC7Z014S-1CLG484C

Part No XC7Z014S-1CLG484C
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 667MHZ 484BGA / Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 65K Logic Cells 667MHz 484-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer AMD Xilinx
Packaging Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 667MHz
Primary Attributes Artix™-7 FPGA, 65K Logic Cells
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 484-LFBGA, CSPBGA
Supplier Device Package 484-CSPBGA (19x19)
Number of I/O 200
Base Product Number XC7Z014
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 122-2027
Standard Package 84
Win Source Part Number 1323254-XC7Z014S-1CLG484C
Ultra Librarian 3D Model Ultra Librarian XC7Z014S-1CLG484C CAD Model

Description

The AMD Xilinx XC7Z014S-1CLG484C is a System on Chip (SoC) from AMD Xilinx.

  • Processor: single ARM Cortex-A9 MPCore processor with CoreSight, clocked @ 667MHz
  • I/Os: 200
  • RAM: 256KB
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, and UART/USART
  • FPGA Logic Cells: 65K
  • FPGA Family: Artix-7
  • Package: 484-CSPBGA (19x19)
  • Temperature Range: 0°C to 85°C (TJ)
  • ROHS3 Compliance: ROHS3 compliant
  • REACH: REACH unaffected
