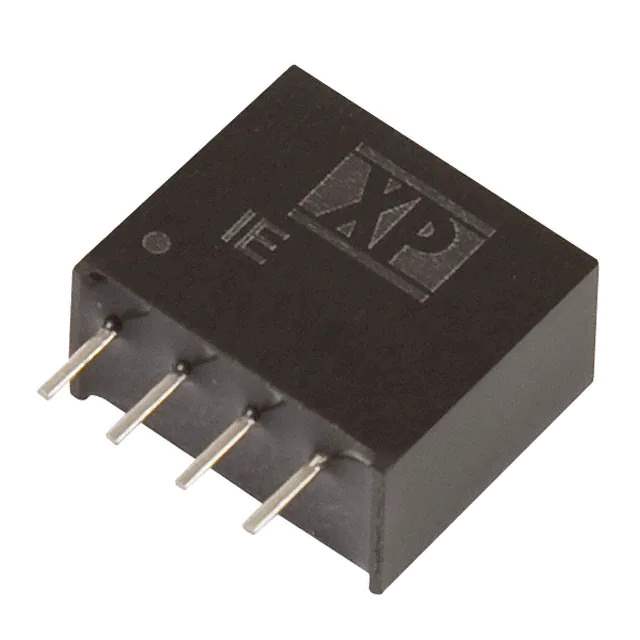

Same model may have multiple batches, images only for reference.

IE0524SH

Name: IE0524SH
Brand: XP Power
SKU: 847833
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IE0524SH
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 24V 1W
Datasheet	IE0524SH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IE (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	24V
Current - Output (Max)	42mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	80%
Mounting Type	Through Hole
Package / Case	4-SIP Module
Size / Dimension	0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm)
Base Product Number	IE0524
Standard Package	40 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847833-IE0524SH
Ultra Librarian 3D Model	Ultra Librarian IE0524SH CAD Model

Alternative Products

Description

The IE (1W) series from XP Power offers isolated DC-DC converters for power supply applications; this is the 847833-IE0524SH. XP Power manufactures it.

Series: IE (1W)
Module Type: Isolated
Package: Tube
Size: 0.46" L x 0.24" W x 0.50" H (11.7mm x 6.0mm x 12.7mm)
Input Voltage: 4.5V to 5.5V
Output Voltage: 24V
Efficiency: 80%
Application: ITE (Commercial)
Isolation Voltage: 3kV
Mounting Type: Through-hole
