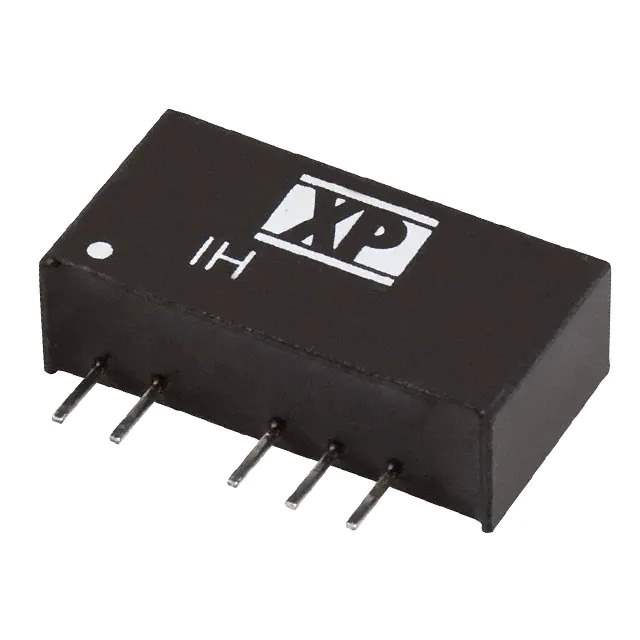

Same model may have multiple batches, images only for reference.

IH0505SH

Name: IH0505SH
Brand: XP Power
SKU: 847933
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IH0505SH
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 2W
Datasheet	IH0505SH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	IH (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	200mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting Type	Through Hole
Package / Case	5-SIP Module
Size / Dimension	0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm)
Base Product Number	IH0505
Standard Package	20 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	847933-IH0505SH
Ultra Librarian 3D Model	Ultra Librarian IH0505SH CAD Model

Alternative Products

Description

The IH0505SH is a 2W isolated module DC-DC converter manufactured by XP Power.

Series: IH series
Size: 0.77" L x 0.30" W x 0.40" H (19.5mm x 7.6mm x 10.2mm)
Outputs: Two outputs
Maximum Output Current: 200mA each
Input Voltage: 4.5V to 5.5V
Output Voltage Output 1: 5V
Output Voltage Output 2: -5V
Efficiency: 72%
Application: ITE (Commercial)
Mounting Type: Through-hole
Package: 5-SIP Module
Operating Temperature: -40°C to 85°C
Product Status: Active
Application: Power Supplies and Board Mount
