Same model may have multiple batches, images only for reference.

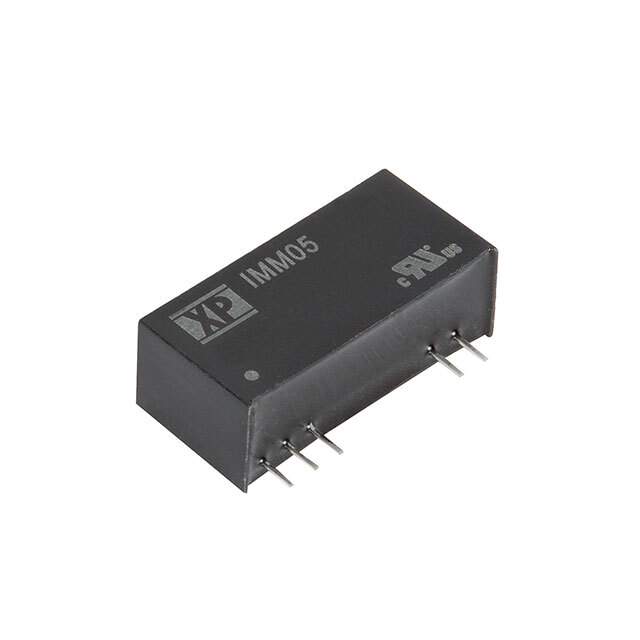

IMM0512S05 Real Image
Same model may have multiple batches, images only for reference.

IMM0512S05

Part No IMM0512S05
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 5W / Isolated Module DC DC Converter 1 Output 5V 1A 9V - 18V Input
Datasheet
IMM0512S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IMM05 (5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 5V
Current - Output (Max) 1A
Power (Watts) 5 W
Voltage - Isolation 1.5 kV
Applications Medical
Features Remote On/Off, OCP, SCP
Temperature Range - Operating -20°C ~ 100°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 9-SIP Module, 5 Leads
Size / Dimension 1.02" L x 0.36" W x 0.49" H (26.0mm x 9.3mm x 12.5mm)
Approval Agency CB, CSA, TUV, UL
Base Product Number IMM0512
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339475-IMM0512S05
Ultra Librarian 3D Model Ultra Librarian IMM0512S05 CAD Model

Description

The 1339475-IMM0512S05 from XP Power is a DC-DC converter that features an isolated module type.

  • Package: Tube
  • Size/Dimension: 1.02” L x 0.36” W x 0.49” H (26.0mm x 9.3mm x 12.5mm)
  • Standard Package: 10
  • Power Output: 5W
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Current Output (Max): 1A
  • Voltage Input: 9V to 18V
  • Voltage Output 1: 5V
  • Efficiency: 82%
  • Mounting Type: Through Hole
  • Package/Case: 9-SIP Module, 5 Leads
  • Operating Temperature: -20°C to 100°C (with derating)
  • Suitable for: Medical Applications
