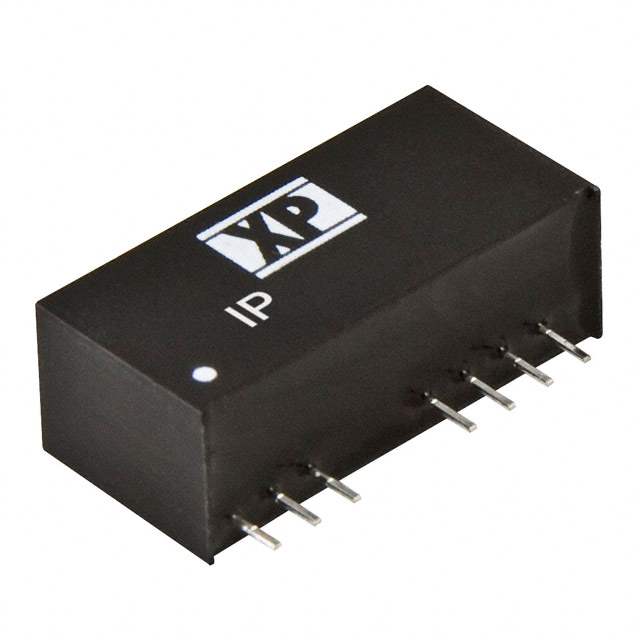

IP2405SA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer XP-Power
Series IP
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 600mA
Power (Watts) - Manufacture Series 3W
Voltage - Isolation 1.6kV (1600V)
Applications ITE (Commercial)
Features Remote On/Off, SCP
Mounting Style Through Hole
Package 8-SIP Module (7 Leads)
Size / Dimension 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 79%
Power (Watts) - Max 3W
Win Source Part Number 205194-IP2405SA
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Ultra Librarian 3D Model Ultra Librarian IP2405SA CAD Model

Description

The XP-Power 205194-IP2405SA is an isolated module DC-DC converter with a 1.6kV (1600V) voltage isolation.

  • Isolation Voltage: 1.6kV (1600V)
  • Mounting Style: Through-Hole
  • Package Size: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
  • Application: ITE (Commercial)
  • Current Output (Max): 600mA
  • Voltage Input Range: 9V to 36V
  • Voltage Output: 5V
  • Features: Remote On/Off, SCP
