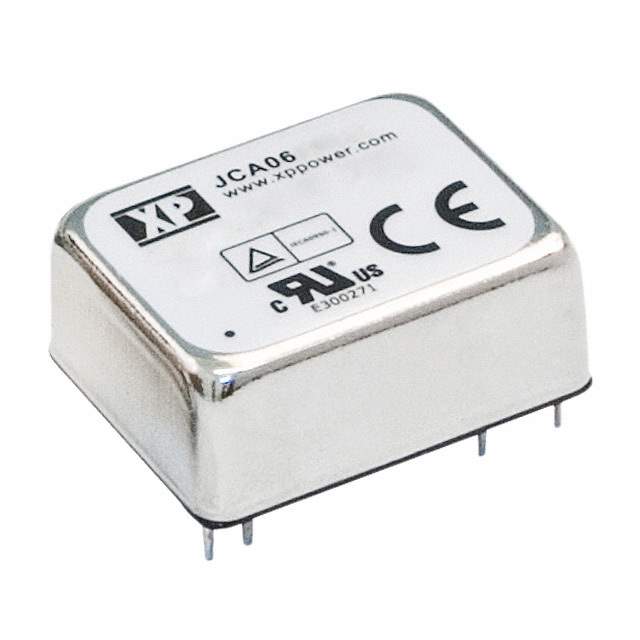

JCA0612S03 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCA (6W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 3.3V
Current - Output (Max) 1.52A
Power (Watts) 6 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 24-DIP Module, 7 Leads
Size / Dimension 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Standard Number 62368-1
Base Product Number JCA0612
Standard Package 16
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337479-JCA0612S03
Ultra Librarian 3D Model Ultra Librarian JCA0612S03 CAD Model

Description

The XP Power JCA (6W) series isolated module DC-DC converter is a reliable and efficient power supply that is perfect for your electronic devices.

  • Overcurrent Protection (OCP): Yes
  • Overvoltage Protection (OVP): Yes
  • Short Circuit Protection (SCP): Yes
  • Undervoltage Lockout (UVLO): Yes
  • Manufacturer: XP Power
  • Series: JCA (6W)
  • Package: Standard
  • Power Rating: 6W
  • Voltage Isolation: 1.5 kV
  • Current Output: 1.52A
  • Package / Case: 24-DIP Module, 7 Leads
  • Temperature Range: -40°C to 100°C
