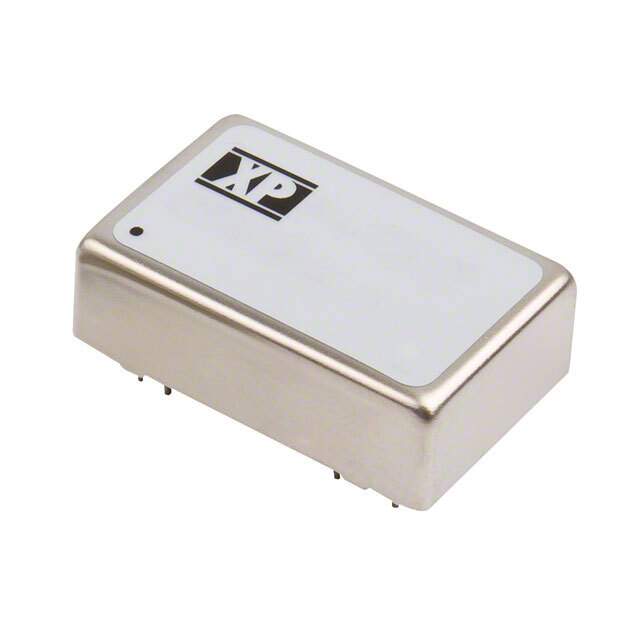

JCJ1048S05 Real Image
Same model may have multiple batches, images only for reference.

JCJ1048S05

Part No JCJ1048S05
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 10W / Isolated Module DC DC Converter 1 Output 5V 2A 36V - 75V Input
Datasheet
JCJ1048S05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCJ (10W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 36V
Voltage - Input (Max) 75V
Voltage - Output 1 5V
Current - Output (Max) 2A
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 100°C
Efficiency 88%
Mounting Type Through Hole
Package / Case 11-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Standard Number 62368-1
Base Product Number JCJ1048
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1338938-JCJ1048S05
Ultra Librarian 3D Model Ultra Librarian JCJ1048S05 CAD Model

Description

The JCJ1048S05 is a power supply electronic component manufactured by XP Power.

  • Mfr: XP Power
  • Type: Board Mount DC DC Converter
  • Series: JCJ
  • Module Type: Isolated
  • Features: OCP, OVP, and SCP
  • Size: 1.25 inches L x 0.80 inches W x 0.40 inches H
  • Power: 10 watts
  • Voltage Isolation: 1.5 kV
  • Outputs: 1
  • Maximum Current Output: 2A
  • Voltage Input Range: 36V to 75V
  • Voltage Output 1: 5V
  • Efficiency: 88 percent
  • Mounting Type: Through-Hole
  • Package/Case: 11-DIP module
  • Leads: 8
  • Temperature Range: -40°C to 100°C
  • ECCN: EAR99
  • HTSUS: 8504.40.9580
  • Standard Number: 62368-1
