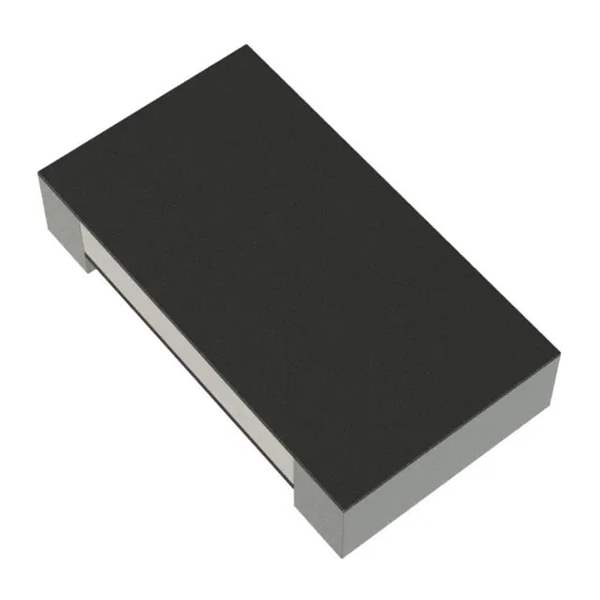

PA0805FRE470R004L Yageo

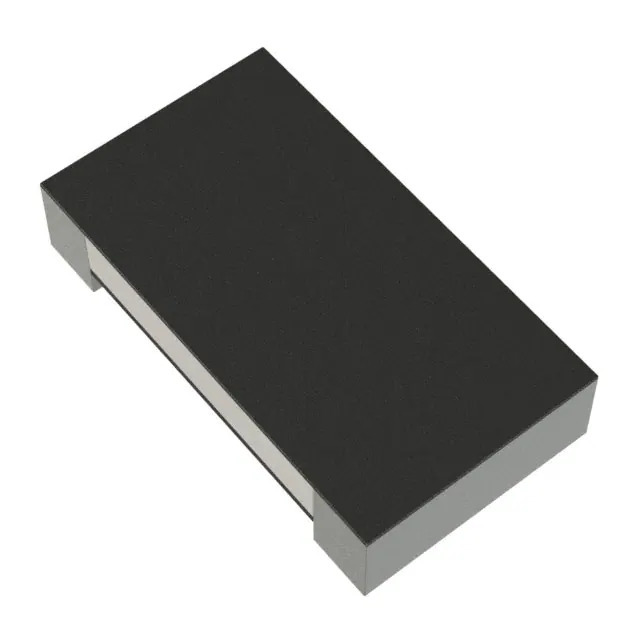

Same model may have multiple batches, images only for reference.

PA0805FRE470R004L

Part No PA0805FRE470R004L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.004 OHM 1% 1/2W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PA
Package Tape & Reel
Product Status Active
Resistance 4 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.018" (0.45mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375418-PA0805FRE470R004L
Ultra Librarian 3D Model Ultra Librarian PA0805FRE470R004L CAD Model

Description

The YAGEO PA0805FRE470R004L Chip Resistor is a high-quality surface mount resistor designed for various applications.

  • Manufacturer: YAGEO
  • Resistance: 4 mOhms
  • Power Rating: 0.5W (1/2W)
  • Package / Case: 0805 (2012 Metric)
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • AEC-Q200 Qualified: Yes
  • Product Status: Active
